    Temperature Sensors

    C7046A,B,C,D Air Temperature Sensors

    The C7046 series of Air Temperature Sensors function as primary and/or secondary sensors in electronic control systems.

    Overview

    The C7046 series of Air Temperature Sensors function as primary and/or secondary sensors in electronic control systems.

    Features & Benefits:
    • C7046A,C Sensors have probe lengths of 8 in. (203 mm) and nominal sensor resistance of 3000 ohms at 77°F (25°C).
    • C7046B Sensor has probe length of 6 in. (152 mm) and nominal sensor resistance of 22,800 ohms at 77°F (25°C).
    • C7046D Sensor has probe length of 8 in. (203 mm) and nominal sensor resistance of 1097 ohms at 77°F (25°C).
    • Carbon type, negative temperature coefficient (NTC) thermistor sensing element in the C7046A,B,C and platinum thin film, positive temperature coefficient (PTC) element in C7046D precisely measures temperature changes.
    • No settings or calibration required.
    • Solid state components not affected by dust or dirt.
    • Fast reacting.
    • Rugged stainless steel insertion probe.
    • Mounts on duct or plenum surface with mounting flange or in a 2 in. by 4 in. (51 by 102 mm) junction box.
    • C7046B can be used as a replacement for C7100B Averaging Temperature Sensor where duct or plenum cross section is less than 13 in. (330 mm).
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    C7046A,B,C,D Air Temperature Sensors Data Sheet 60-2350
    application/pdf 358.03 KB
    7/1/2004
    358.03 KB
    Name
    Description
    File Size
    Date
    Size
    C7046A,B,C,D Air Temperature Sensors Data Sheet 60-2350
    application/pdf 358.03 KB
    7/1/2004
    358.03 KB
    Name
    Description
    File Size
    Date
    Size
    C7046A,B,C,D Air Temperature Sensors Data Sheet 60-2350
    358.03 KB
    7/1/2004
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list

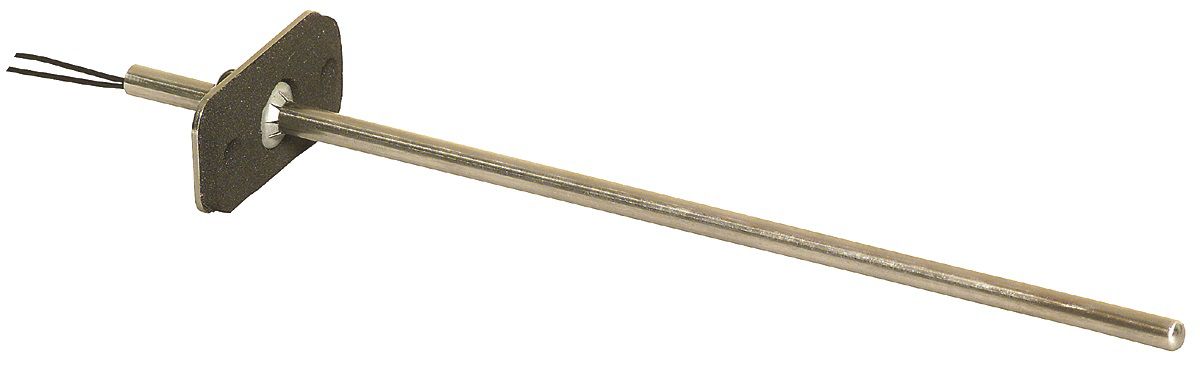

    C7046A1004/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046A1004/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046A1038/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 12 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046A1038/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 12 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046B1010/U
    Duct Temperature Sensor, 22.8K ohm at 77F NTC, 6 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046B1010/U
    Duct Temperature Sensor, 22.8K ohm at 77F NTC, 6 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046C1000/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion, fast response
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046C1000/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion, fast response
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046C1034/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion, fast response, with 770018-1 Amp plug
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046C1034/U
    Duct Temperature Sensor, 3K ohm at 77F NTC, 8 in. insertion, fast response, with 770018-1 Amp plug
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046D1008/U
    Duct Temperature Sensor, 1097 ohm at 77F PTC, 8 in. insertion
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-C7046-c3-3
    C7046D1008/U
    Duct Temperature Sensor, 1097 ohm at 77F PTC, 8 in. insertion
