Plant & Integration Controllers

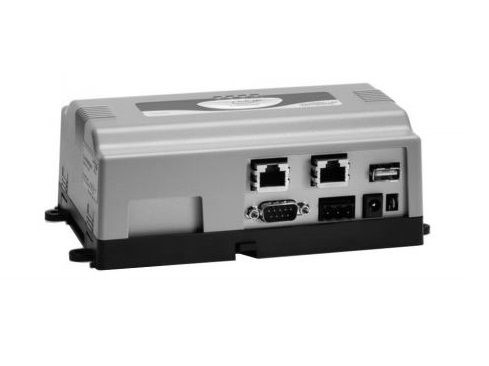

CLAXSERIES Controller

CLAXSERIES Controllers are a compact integration platform for building management allows over the Internet and presents real-time information to users in web-based graphical views

CLAXSERIES Controllers offers integrated HVAC and non-HVAC control, supervision, data logging, alarming, scheduling, and network management functions. It integrates connected devices regardless of device manufacturer and protocol used. Investment safety is guaranteed, as emerging new protocols can be added easily It facilitates service opportunities and minimizes operational cost. HAWK 300E enhancements include data recovery services for battery-less operation and increased operating ambient temperature. Battery maintenance is no longer necessary when using data recovery services

Features & Benefits:
  • It supports the most common open standards as bacnet, lonworks, EIB-KNX, Modbus, M-bus, SNMP, and obix
  • It permits the full network management of LONWORKS devices
  • The communication capability can be extended by adding plug-in cards into the unit's two expansion slots
  • Features two Ethernet ports plus one RS 232 port and one RS 485 port as a standard
  • The Graphical Engineering Tool (COACHAX) is used for programming
Certifications:
  • CE
  • UL 916
  • RoHS Compliant
  • FCC part 15 Class A2
  • C-UL
  • C22.2 No. 205-M1983

Others

  • Minimum Shipping & Storage Temperature
    • 0 Degrees Celsius
  • Maximum Shipping & Storage Temperature
    • 70 Degrees Celsius
  • Management Applications
    • ARENA??
  • Control Software
    • COACHAX
  • Includes
    • Engineering software COACHAX; Open driver
  • Mounting Type
    • DIN Rail or Wall Mounting
    • Wall-mounting; Panel-mounting,
  • Regulatory Approvals
    • CE; BTL; UL 916; RoHS Compliant; FCC part 15 Class A2; C-UL listed to Canadian Standards Association; CSA C22.2 No. 205-M1983 Signal Equipment
  • Brand
    • Centraline
  • Communication Technology
    • BACnet; LonWorks; EIB-KNX; Modbus; M-bus; SNMP; oBIX

Others

  • Minimum Shipping & Storage Temperature
    • 0 Degrees Celsius
  • Maximum Shipping & Storage Temperature
    • 70 Degrees Celsius
  • Management Applications
    • ARENA??
  • Control Software
    • COACHAX
  • Includes
    • Engineering software COACHAX; Open driver
  • Mounting Type
    • DIN Rail or Wall Mounting
    • Wall-mounting; Panel-mounting,
  • Regulatory Approvals
    • CE; BTL; UL 916; RoHS Compliant; FCC part 15 Class A2; C-UL listed to Canadian Standards Association; CSA C22.2 No. 205-M1983 Signal Equipment
  • Brand
    • Centraline
  • Communication Technology
    • BACnet; LonWorks; EIB-KNX; Modbus; M-bus; SNMP; oBIX
  • Management Applications : ARENA??
  • Control Software : COACHAX
  • Includes : Engineering software COACHAX; Open driver
  • Mounting Type : DIN Rail or Wall Mounting|Wall-mounting; Panel-mounting,
  • Regulatory Approvals : CE; BTL; UL 916; RoHS Compliant; FCC part 15 Class A2; C-UL listed to Canadian Standards Association; CSA C22.2 No. 205-M1983 Signal Equipment
  • Brand : Centraline
  • Communication Technology : BACnet; LonWorks; EIB-KNX; Modbus; M-bus; SNMP; oBIX
  • Minimum Shipping & Storage Temperature : 0 Degrees Celsius
  • Maximum Shipping & Storage Temperature : 70 Degrees Celsius
SKU
Description
alt
CLAXSERIES300E
CLAXSERIES Controller, 24 V AC/DC, 25 VA, BACnet, LonWorks, LON I/O Modules, 24 MB JHM, 600 kRU
