Wall Switches

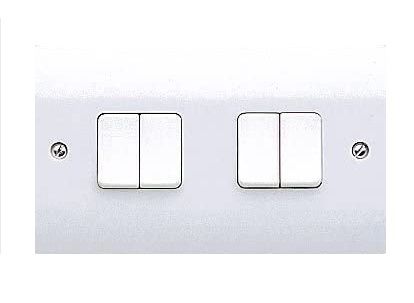

Logic Plus Flush Plate Switch
MK Electric Logic Plus range brings Flush Plate Switches which are designed to perfectly complement modern interiors, offering an unobtrusive.
Overview
MK Electric Logic Plus™ Flush Plateswitches and other wiring devices from MK Electric have been designed to perfectly complement modern interiors, offering an unobtrusive and sophisticated look totally in keeping with today’s design. Technically, they exceed British Standard requirements with patented features that make these products the most advanced and safest available.
Features & Benefits:- Plate Switch, 4 Gang, 2Way, 10A Current rating
- Terminal capacity 4 x 1mm, 4 x 1.5mm, 3 x 2.5mm or 1,6mm
- Positive switch action
- Does not need to be de-rated when used on fluorescent loads
- Flush mounting box = 861ZIC
- Flush mounting box = 866ZIC, for extra wiring space
- Surface mounting box = K2160WHI
- Surface mounting box = k2140, for extra wiring space
- Confirms to IEC60669-12017 / BS EN60669-1, 2018
- Low Voltage Directive 2014/35/EU
- RoHS Directive 2011/65/EU
- Amendment RoHS Directive (EU) 2015/863
- CE Marked
- IP Rating = IP2XD
Specifications
Others
- Operating Voltage
- 250 voltage alternating current
- Finish
- White
- Brand
- MK Electric
- Ways
- 2 millimetre
- Gangs
- 4
- Poles
- 1
Others
- Operating Voltage
- 250 voltage alternating current
- Finish
- White
- Brand
- MK Electric
- Ways
- 2 millimetre
- Gangs
- 4
- Poles
- 1
- Operating Voltage : 250 voltage alternating current
- Finish : White
- Brand : MK Electric
- Ways : 2 millimetre
- Gangs : 4
- Poles : 1
Product Number
SKU
Description
K4874RPWHI
10A 4G SP 2-way PlateSwitch
SKU
Description
K4874RPWHI
10A 4G SP 2-way PlateSwitch
