    Emergency Voice / Alarm Communications System

    Addressable Extinguishing Unit

    2-channel addressable extinguishing unit for a single zone, usable with conventional and addressed control panels. It allows the simulation of 2 output modules for the commands and 5 input modules for the information reports (for each channel).

    Overview

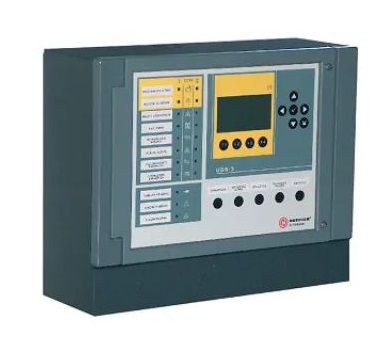

    UDS-3N is 2-channel addressable extinguishing unit for a single zone, usable with conventional and addressed control panels. It allows the simulation of 2 output modules for the commands and 5 input modules for the information reports (for each channel). In the case of connection to an addressed control unit, the output modules will manage the zones and shutdown, while the input modules will report local faults and disablements to it. The metal cabinet features an LCD display for easy supervision of system status and a keypad providing different password levels to manage the programming and the local releasing system management.

    Features & Benefits:
    • 2 Released zones
    • Release signal delay
    • Component status supervision
    • Manual operating mode
    • Controlled pre-alarm, alarm and shutdown outputs for each zone
    • Emergency stop device
    Certifications:
    • EN 12094-1
    Others
    Name
    Description
    File Size
    Date
    Size
    Extinguishing System-Data Sheet
    application/pdf 234.96 KB
    6/1/2023
    234.96 KB
    Centrale Spegnimento-Programming Manual
    application/pdf 3.41 MB
    6/1/2023
    3.41 MB
    Release Panel-Installation Manual
    application/pdf 3.28 MB
    6/1/2023
    3.28 MB
    Unità Di Spegnimento-Data Sheet
    application/pdf 141.81 KB
    6/1/2023
    141.81 KB
