    Emergency Voice / Alarm Communications System

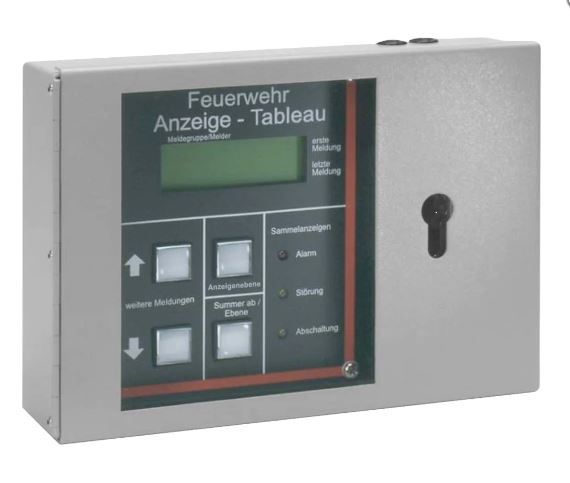

    Fire Brigade Display Panel FAT 3000-EDP

    Microprocessor-controlled fire brigade display panel FAT 3000-EDP acts as an additional display device for a FlexES fire alarm control panel. Serial connection to the fire alarm control panel is done via the RS485 interface.

    Overview

    Microprocessor-controlled fire brigade display panel FAT 3000-EDP acts as an additional display device for a FlexES fire alarm control panel. Serial connection to the fire alarm control panel is done via the RS485 interface. In addition, a serial fire brigade control panel can be connected via RS232. Both conventional and redundant operation via adapter ADP-N3E according to DIN 14675 possible. The collective displays and control buttons enable the fire brigade to provide a uniform indication of the conditions on site. Up to 4,000 additional texts that can be programmed via PC, an event memory and the option of a short circuit and interruption-tolerant ring bus installation guarantee maximum security. The ESPA interface enables a direct, non-galvanically isolated connection to a telecommunications or paging system.

    Features & Benefits:
    • Additional display device for a FlexES fire alarm control panel
    • Serial connection to the fire alarm control panel is done via the RS485 interface
    • Serial fire brigade control panel can be connected via RS232
    • Provides a uniform indication of the conditions on site
    • Up to 4,000 additional texts that can be programmed via PC
    • ESPA interface enables a direct, non-galvanically isolated connection to a telecommunications or paging system
    Certifications:
    • VdS : G 205076
