Monitor Modules

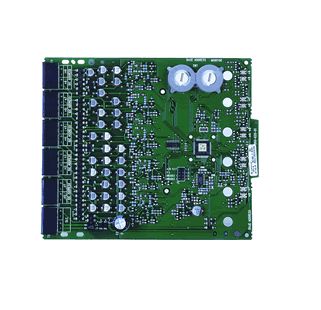

NMM-100-10 Ten Input Monitor Module

The NMM-100-10 Ten Input Modules are interface modules between FireWarden series control panel and normally open contact devices in intelligent alarm systems.These modules have panel-controlled green LED indicators.

Overview

The NMM-100-10 Ten-Input Monitor Modules are interface modules between a FireWarden series control panel and normally open contact devices in intelligent alarm systems such as pull stations, security contacts, or flow switches. The first address on the NMM-100-10 is set from 01 to 90 and the remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused addresses. The supervised state (normal, open, or short) of the monitored device is sent back to the panel. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground — otherwise each monitor operates independently from the others. Each NMM-100-10 module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.

Features & Benefits:
  • Ten addressable Class B or five addressable Class A initiating device circuits
  • Removable 12 AWG (3.31 mm²) to 18 AWG (0.821 mm²) plug-in terminal blocks
  • Status indicators for each point
  • Unused addresses may be disabled
  • Rotary address switches
  • Flexible mounting options
  • Mounting hardware included
Certifications:
  • For NMM-100-10
  • UL Listed: S635
  • CSFM approved: 7300-0028:256
  • FM approved
  • For NMM-100-10A
  • ULC Listed: S635
Sort
Data Sheet
Document Title
Document Type
File Size
Document Language
Brand
Data Sheet
0.60 MB
Data Sheet
0.57 MB
Document Title
Document Type
File Size
Document Language
Brand
Data Sheet
0.60 MB
Data Sheet
0.57 MB
Product Number
SKU
Description
alt
NMM-100-10
Ten Input Module, 15-32V DC, 0-49 Degree Celcius, 3.75mA at 24V
SKU
Description
alt
NMM-100-10
Ten Input Module, 15-32V DC, 0-49 Degree Celcius, 3.75mA at 24V
