Speakers

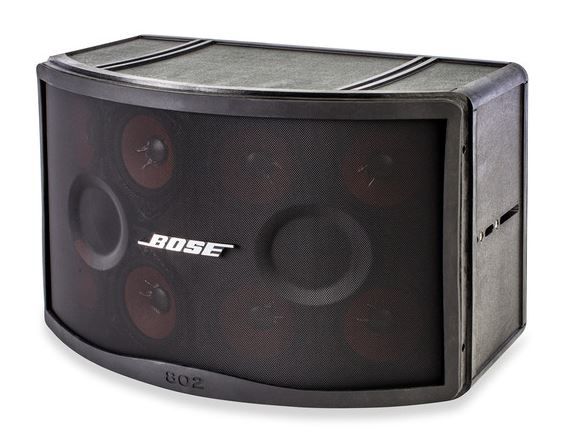

Panaray® 802® Series IV Loudspeaker
Panaray® 802® Series IV Loudspeaker providing a cost-effective solution for many indoor or outdoor installed sound-reinforcements applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
The Panaray® 802® Series IV installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array® design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcements applications.
Features & Benefits:- Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity
- 8 x Bose 4.5” full-range drivers for legendary reliability
- 52 Hz - 15 kHz frequency range eliminates need for subwoofers for moderate full-range music levels
- 123 dB peak SPL for sound-reinforcement and foreground music
- Rugged, lightweight enclosure with threaded inserts for easy installations
- Weather-Rated design for indoor or outdoor installations
- Requires active equalization
- IEC268-5
Please sign in to view part numbers available for purchase based on your account Sign In
