    Heat Detectors

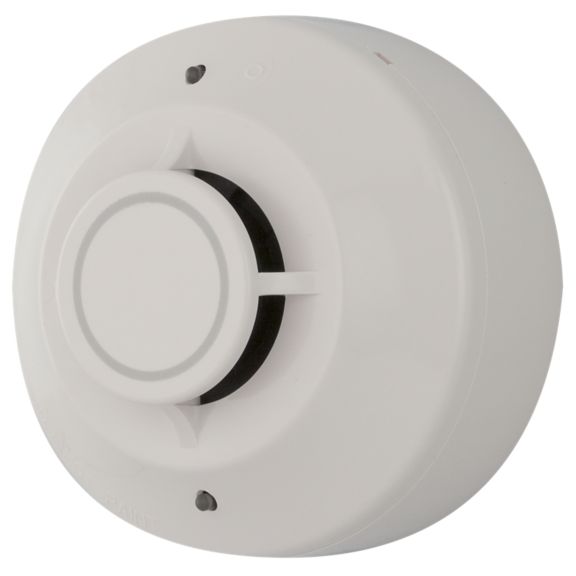

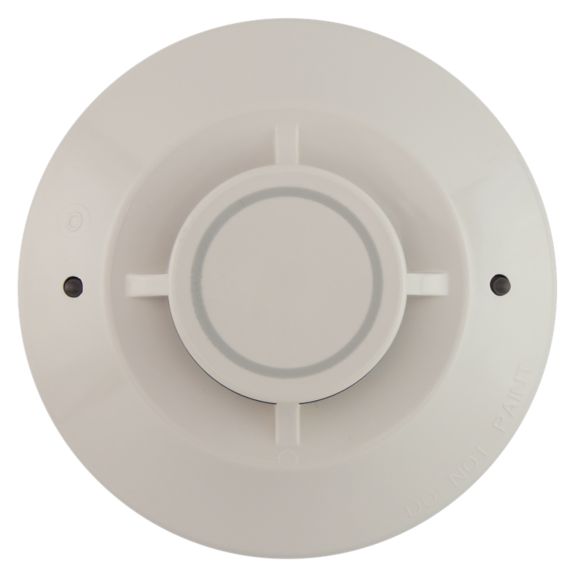

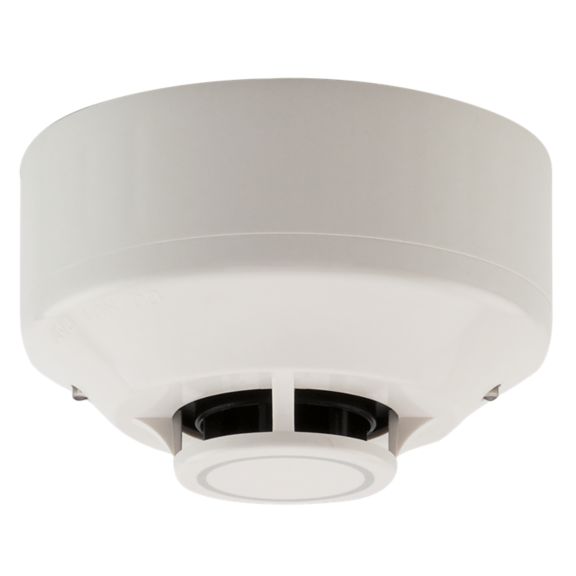

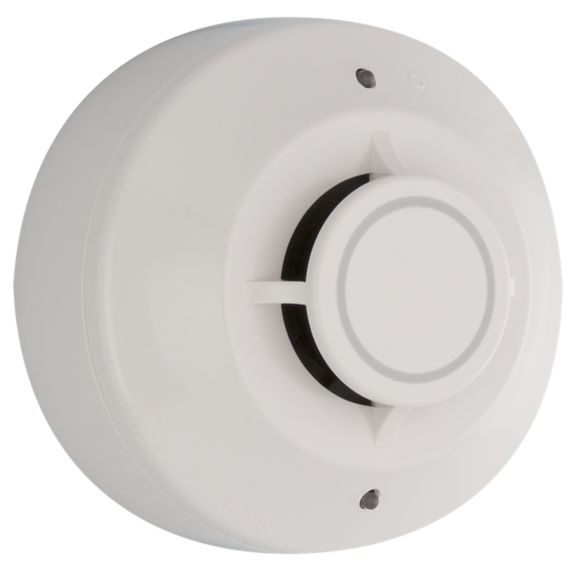

    SWIFT® WSK-HEAT Heat Detector

    SWIFT® WSK-HEAT detectors are wireless, addressable detectors that provide secure, reliable communication to the fire alarm control panel (FACP) across a Class A mesh network.

    Overview

    SWIFT® WSK-HEAT detectors are wireless, addressable detectors that provide secure, reliable communication to the fire alarm control panel (FACP) across a Class A mesh network.The wireless detectors create an opportunity for when traditional wired device applications are costly or obtrusive, such as surface-mount conduit, or possibly dangerous, such as asbestos. In addition, both wired and wireless devices can be present on the same FACP to provide an integrated wired/wireless solution for increased installation potential.

    WSK-HEAT detectors utilize sensors designed for open area protection with 50 ft spacing capability as approved by UL 521. All sensors offer addressable code wheels and two LEDs. The LEDs are controlled by the panels. Operation modes include red, green, and amber colors with various solid or blink patterns. The mesh network within the SWIFT system creates a child-parent relationship between the devices so that each device has two parents providing a second path for communications on every device. If one device can no longer operate for any reason, the rest of the devices can still communicate with each other directly or through one or more intermediate devices.

    The SWIFT system also engages frequency hopping to prevent intentional or accidental system interference. The devices communicate across the mesh network through a gateway to the FACP. The FACP views the SWIFT wireless device and another addressable device on the system providing similar detection functions and outputs as a wired counterpart. A SWIFT wireless system can use any combination of modules, smoke and heat detectors, pullstations, and A/V bases.

    Features & Benefits:
    • Addressable code wheels
    • Commercial applications
    • Frequency hopping
    • Bi-directional communications
    • Class A Mesh Network
    • Wireless Installation
    Certifications:
    • Part 15 of the FCC Rules
    • UL Listed: S6173 & S6228
    • UL Standards: 864, 268
    • CSFM: 7254-0559:0509, 7272-0559:0506
    • FM Approved
    • FCC ID: AUBWFSSD
    • NFPA 72 Fire Alarm System Requirements
    Others
    Name
    Description
    File Size
    Date
    Size
    WSK-HEAT-ROR BIM File
    application/x-tika-msoffice 528 KB
    528 KB
    WSK-HEAT BIM File
    application/x-tika-msoffice 500 KB
    500 KB
    SWIFT Wireless FAQ Flyer-Brochure
    application/pdf 218.48 KB
    5/17/2023
    218.48 KB
    Sales Sheet
    Name
    Description
    File Size
    Date
    Size
    SWIFT - Smart Wireless Integrated Fire Technology Sell Sheet-Sell Sheet
    application/pdf 354.04 KB
    3/30/2023
    354.04 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    Mesh_Firelite Installation Document
    application/pdf 4.25 MB
    5/8/2023
    4.25 MB
    RFScan_Firelite Installation Document
    application/pdf 2.3 MB
    5/8/2023
    2.3 MB
    LinkTest_Firelite Installation Document
    application/pdf 2.34 MB
    5/8/2023
    2.34 MB
    Silent Knight SWIFT Instruction Manual for WSK-HEAT
    application/pdf 318.5 KB
    5/8/2023
    318.5 KB
    Silent Knight SWIFT Instruction Manual
    application/pdf 1.79 MB
    6/16/2023
    1.79 MB
    SWIFT Site Survey Quick Start Guide
    application/pdf 1.17 MB
    5/8/2023
    1.17 MB
    Link Test-Quick Start Guide
    application/pdf 966.37 KB
    5/8/2023
    966.37 KB
    SWIFT Installation Quick Start Guide
    application/pdf 1.98 MB
    5/8/2023
    1.98 MB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    SWIFT� Wireless Detector Data Sheet
    application/pdf 90.46 KB
    5/14/2023
    90.46 KB
    FAQs
    Name
    Description
    File Size
    Date
    Size
    SWIFT Wireless FAQ Flyer
    application/pdf 218.48 KB
    10/20/2021
    218.48 KB
    Name
    Description
    File Size
    Date
    Size
    SWIFT Wireless FAQ Flyer
    application/pdf 218.48 KB
    10/20/2021
    218.48 KB
    WSK-HEAT-ROR BIM File
    application/x-tika-msoffice 528 KB
    528 KB
    WSK-HEAT BIM File
    application/x-tika-msoffice 500 KB
    500 KB
    SWIFT Wireless FAQ Flyer-Brochure
    application/pdf 218.48 KB
    5/17/2023
    218.48 KB
    Mesh_Firelite Installation Document
    application/pdf 4.25 MB
    5/8/2023
    4.25 MB
    RFScan_Firelite Installation Document
    application/pdf 2.3 MB
    5/8/2023
    2.3 MB
    LinkTest_Firelite Installation Document
    application/pdf 2.34 MB
    5/8/2023
    2.34 MB
    Silent Knight SWIFT Instruction Manual for WSK-HEAT
    application/pdf 318.5 KB
    5/8/2023
    318.5 KB
    SWIFT� Wireless Detector Data Sheet
    application/pdf 90.46 KB
    5/14/2023
    90.46 KB
    Silent Knight SWIFT Instruction Manual
    application/pdf 1.79 MB
    6/16/2023
    1.79 MB
    SWIFT Site Survey Quick Start Guide
    application/pdf 1.17 MB
    5/8/2023
    1.17 MB
    Link Test-Quick Start Guide
    application/pdf 966.37 KB
    5/8/2023
    966.37 KB
    SWIFT Installation Quick Start Guide
    application/pdf 1.98 MB
    5/8/2023
    1.98 MB
    SWIFT - Smart Wireless Integrated Fire Technology Sell Sheet-Sell Sheet
    application/pdf 354.04 KB
    3/30/2023
    354.04 KB
    Name
    Description
    File Size
    Date
    Size
    WSK-HEAT-ROR BIM File
    528 KB
    WSK-HEAT BIM File
    500 KB
    SWIFT Wireless FAQ Flyer-Brochure
    218.48 KB
    5/17/2023
    SWIFT - Smart Wireless Integrated Fire Technology Sell Sheet-Sell Sheet
    354.04 KB
    3/30/2023
    Mesh_Firelite Installation Document
    4.25 MB
    5/8/2023
    RFScan_Firelite Installation Document
    2.3 MB
    5/8/2023
    LinkTest_Firelite Installation Document
    2.34 MB
    5/8/2023
    Silent Knight SWIFT Instruction Manual for WSK-HEAT
    318.5 KB
    5/8/2023
    Silent Knight SWIFT Instruction Manual
    1.79 MB
    6/16/2023
    SWIFT Site Survey Quick Start Guide
    1.17 MB
    5/8/2023
    Link Test-Quick Start Guide
    966.37 KB
    5/8/2023
    SWIFT Installation Quick Start Guide
    1.98 MB
    5/8/2023
    SWIFT� Wireless Detector Data Sheet
    90.46 KB
    5/14/2023
    SWIFT Wireless FAQ Flyer
    218.48 KB
    10/20/2021
    Product Number
    Part Number
    Description
    Add to list
    WSK-HEAT
    Intelligent wireless fixed-temperature (135°) heat detector. Ships with B501W base included. Requires (4) CR-123A batteries (included).
    WSK-HEAT-ROR
    Intelligent wireless rate of rise (135°) heat detector. Ships with B501W base included. Requires (4) CR-123A batteries (included)

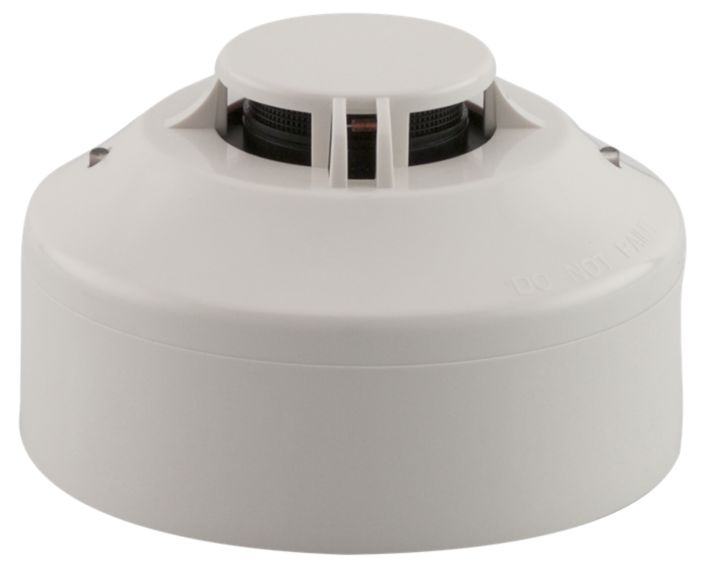

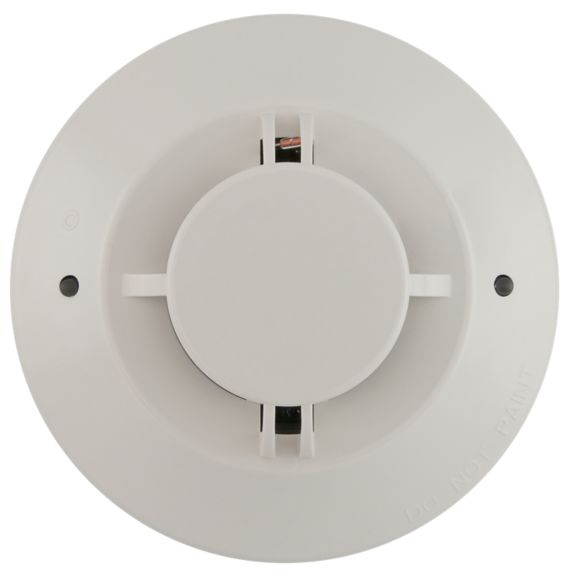

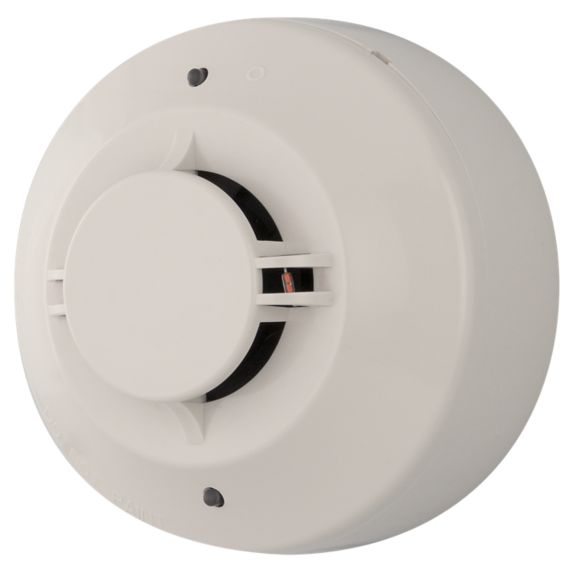

    WSK-PHOTO-T
    Intelligent wireless photoheat detector. Ships with B501W base included. Requires (4) CR-123A batteries (included)
