Fire Alarm Control Panels

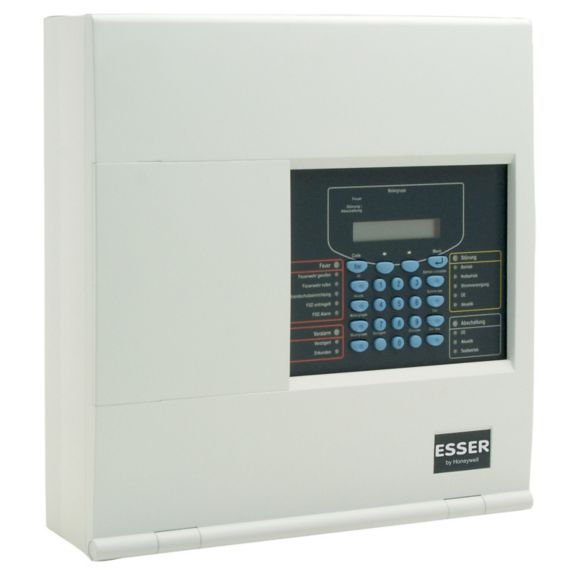

ECS 80 Fire Control
The conventional ECS 80 Fire Control and Signalling Equipment are designed for small and medium-sized fire detection systems with 4 and 8 loops.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The conventional ECS 80 Fire Control and Signalling Equipment are designed for small and medium-sized fire detection systems with 4 and 8 loops. The UGA function of the DHW provides 2 lines of monitored sound diffusers, it can be used at 24 V dc with the internal Safety Power Supply (AES) and if necessary 24 or 48 V dc with an external AES. The ECS 80-4C and ECS 80-8C allow the building to be secured by controlling 2 CMSI functions with power failure.
Features & Benefits:- 4 or 8 loops of maximum 32 detectors each
- LCD display of two lines of 20 characters each
- Single loop indication
- 1 general fire output, 1 CRT relay, max. 30 V DC/ 2 A
- 1 general fault output, 1 CRT relay, max. 30V DC / 2A
- 2 sound diffuser line outputs (UGA) 24 V /450 mA max. By output (internal power supply). Possibility of connecting an external AES in 24 V (2 A) or 48 V (1 A)
- 2 safety lines (24 W max.)
- 24V / 0.5 A power supply for devices external
- Alarm counter
- Test mode
- Compatible with conventional detectors of the F-ECO1000 2000 series as well as the 1100 Universal detectors det
- EN54-2 A1
- EN54-4 A2
- NFS 61936
- NFS 61940
Specifications
Others
- Brand
- Esser
Others
- Brand
- Esser
- Brand : Esser
