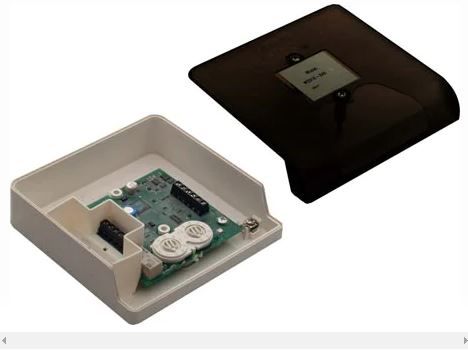

M201E Input/Output Module
The M201E provides a single output that can be switched when commanded by a fire alarm control panel. In the supervised mode, the M201E supervises the wiring to the load devices.
The M201E provides a single output that can be switched when commanded by a fire alarm control panel. In the supervised mode, the M201E supervises the wiring to the load devices. Upon command from the fire alarm control panel, the M201E switches an external power supply to operate these devices, while de-activating the load supervision. The M200 series of modules are a family of microprocessor controlled interface devices permitting the monitoring and/or control of auxiliary devices. M210E single channel input module provides single channel monitoring of normally open contact fire alarm and supervisory devices. The M210E has a single tri-colour green/red/yellow LED, which can be set by panel command to pulse green each time the module is polled. In case of an alarm the panel can switch the red indicator on continuously. The Yellow LED is controlled by the module and blinks to indicate an open circuit on the input circuit. This fault indication is overridden by a panel command to turn the red LED on.
Features & Benefits:- Common mechanical platform for box, panel and DIN rail mount versions
- Tri-colour LEDs
- Built-in short circuit isolators
- Decade address switches visible and selectable in two planes
- Wide angle LED visibility
- BOSEC Approved: TCC 2 - K 466-e
- GEA GEI 1 1-082 and CEA GEI 1-084
- LPCB Approved
- VdS Approved
