Combination Strobes

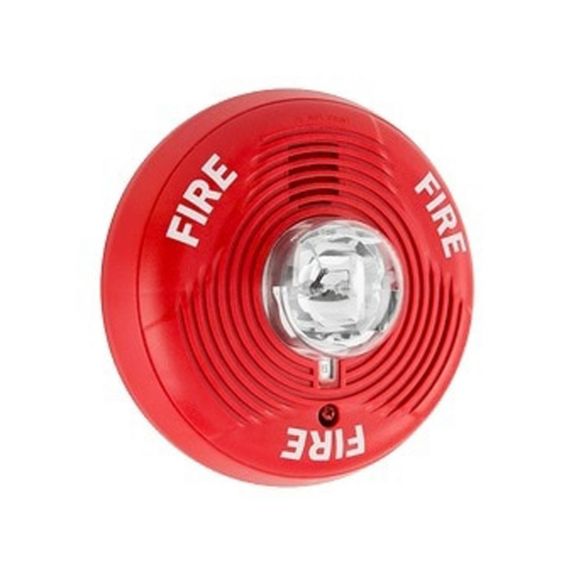

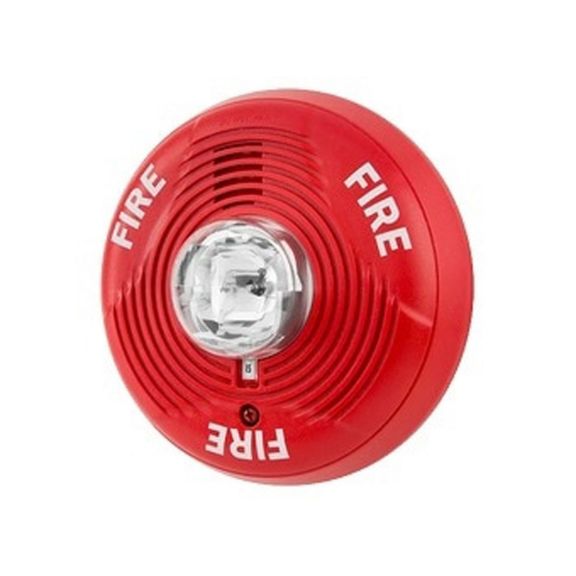

SpectrAlert® Advance PC4R Ceiling-Mount Horn Strobe
SpectrAlert® Advance PC4R ceiling-mount horn strobes feature field-selectable candela settings of 15, 15/75, 30, 75, 95, 110, 115, 150, 177, and 185. These 4-wire, red, horn strobes feature automatic selection of 12 or 24V operation.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
SpectrAlert® Advance PC4R ceiling-mount horn strobes feature field-selectable candela settings of 15, 15/75, 30, 75, 95, 110, 115, 150, 177, and 185. These 4-wire, red, horn strobes feature automatic selection of 12 or 24V operation. All devices feature plug-in designs and instant feedback messages to ensure correct installation of individual devices.
Features & Benefits:- Plug-in design
- Shorting spring on mounting plate for continuity check before installation
- Captive mounting screw
- Tamper-resistance capability
- Field-selectable candela settings
- Automatic selection of 12 or 24V operation at 15 and 15/ 75 candela.
- Minimal intrusion into the backbox
- Horn rated at 88+ dbA at 16V
- Rotary switch for tone selection
- Three horn volume settings
- Electrically compatible with existing SpectrAlert products
- UL Listed: S4011
- ULC Listed
- FM Approved
- MEA: 452-05-E
- CSFM: 7300-1653:0188
Specifications
Others
- Brand
- System Sensor
- Color
- Red
Others
- Brand
- System Sensor
- Color
- Red
- Brand : System Sensor
- Color : Red
Others
Name
Description
File Size
Date
Size
SpectrAlert Advance Selectable Output Notification Appliances General System Data Sheet
application/pdf 170.13 KB
9/9/2024
170.13 KB
SpectrAlert Ceiling Mount Series Strobes and Horn-Strobes Manual
application/pdf 190.32 KB
10/10/2024
190.32 KB
AV SpectrAlert Advance Products Brochure
application/pdf 1.42 MB
10/1/2014
1.42 MB
SAA: Indoor Ceiling Strobes - Horn Strobes Datasheet
application/pdf 812.32 KB
3/1/2015
812.32 KB
Outdoor Device Shorting Spring Tech Bulletin
application/pdf 102.77 KB
10/3/2024
102.77 KB
Data Sheet
Name
Description
File Size
Date
Size
Selectable Output Notification Appliances Datasheet
application/pdf 481.6 KB
9/10/2024
481.6 KB
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
application/pdf 469.75 KB
11/9/2011
469.75 KB
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
application/pdf 463.73 KB
11/9/2011
463.73 KB
Name
Description
File Size
Date
Size
Selectable Output Notification Appliances Datasheet
application/pdf 481.6 KB
9/10/2024
481.6 KB
SpectrAlert Advance Selectable Output Notification Appliances General System Data Sheet
application/pdf 170.13 KB
9/9/2024
170.13 KB
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
application/pdf 469.75 KB
11/9/2011
469.75 KB
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
application/pdf 463.73 KB
11/9/2011
463.73 KB
SpectrAlert Ceiling Mount Series Strobes and Horn-Strobes Manual
application/pdf 190.32 KB
10/10/2024
190.32 KB
AV SpectrAlert Advance Products Brochure
application/pdf 1.42 MB
10/1/2014
1.42 MB
SAA: Indoor Ceiling Strobes - Horn Strobes Datasheet
application/pdf 812.32 KB
3/1/2015
812.32 KB
Outdoor Device Shorting Spring Tech Bulletin
application/pdf 102.77 KB
10/3/2024
102.77 KB
Name
Description
File Size
Date
Size
SpectrAlert Advance Selectable Output Notification Appliances General System Data Sheet
170.13 KB
9/9/2024
SpectrAlert Ceiling Mount Series Strobes and Horn-Strobes Manual
190.32 KB
10/10/2024
SAA: Indoor Ceiling Strobes - Horn Strobes Datasheet
812.32 KB
3/1/2015
Outdoor Device Shorting Spring Tech Bulletin
102.77 KB
10/3/2024
Selectable Output Notification Appliances Datasheet
481.6 KB
9/10/2024
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
469.75 KB
11/9/2011
SpectrAlert Advance Selectable Output Notification Appliances Data Sheet
463.73 KB
11/9/2011
