Aspirating Smoke Detector
Signaling Line Circuit

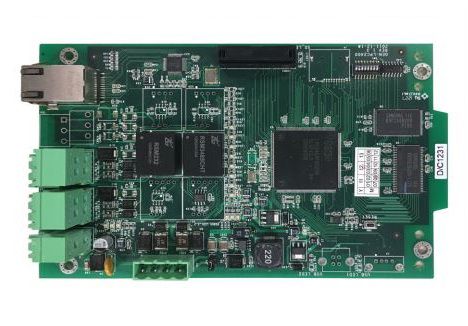

Honeywell Notifier’s Signaling Line Circuit-Integration Module provides a communication link between a VESDAnet network and a Fire Alarm Control Panel SLC loop via the High Level Interface VHX-1420-HFS.
Overview
Honeywell Notifier’s Signaling Line Circuit-Integration Module provides a communication link between a VESDAnet network and a Fire Alarm Control Panel SLC loop via the High Level Interface VHX-1420-HFS. The module allows mapping of alarms and faults from VESDA detectors onto FACP monitor module addresses. The SLC-IM translates VESDAnet protocol to SLC protocol, enabling VESDA detector events on the VESDAnet to be annunciated by an FACP.
Features & Benefits:- Communicates with the VESDAnet via an RS-232 connection
- Supervises the connection to the VHX-1420-HFS HLI
- Provides 159 Flash Scan® monitor module addresses
- Provides individual alarm annunciation
- Uses seven user-defined Flash Scan monitor module
- Supports up to 22 VESDA detectors on one SLC loop
- Supports Style 4 and Style 6 configurations on the VESDAnet network.
- UL / ULC
Specifications
Others
- Maximum Operating Humidity
- 93 Percentage
- Maximum Operating Current
- 0.1 ampere
- Maximum Input Power
- 28
- Overall Cabinet Width
- 9.23; 23.44
- Minimum Operating Ambient Temperature
- 0; 32
- Regulatory Approvals
- UL; ULC; CAN; NFPA 72 Watt
- Overall Cabinet Height
- 2.75; 6.99 millimetre
- Communications Protocol
- RS-232
- Includes
- Circuit Board; RS-232 Cable voltage alternating current
- Networkable or Standalone
- Yes
- Port Types
- COM
- For Use With
- VESDAnet network; Fire Alarm Control Panel volt
- Brand
- Notifier
Others
- Maximum Operating Humidity
- 93 Percentage
- Maximum Operating Current
- 0.1 ampere
- Maximum Input Power
- 28
- Overall Cabinet Width
- 9.23; 23.44
- Minimum Operating Ambient Temperature
- 0; 32
- Regulatory Approvals
- UL; ULC; CAN; NFPA 72 Watt
- Overall Cabinet Height
- 2.75; 6.99 millimetre
- Communications Protocol
- RS-232
- Includes
- Circuit Board; RS-232 Cable voltage alternating current
- Networkable or Standalone
- Yes
- Port Types
- COM
- For Use With
- VESDAnet network; Fire Alarm Control Panel volt
- Brand
- Notifier
- Maximum Operating Humidity : 93 Percentage
- Maximum Operating Current : 0.1 ampere
- Maximum Input Power : 28
- Overall Cabinet Width : 9.23; 23.44
- Minimum Operating Ambient Temperature : 0; 32
- Regulatory Approvals : UL; ULC; CAN; NFPA 72 Watt
- Overall Cabinet Height : 2.75; 6.99 millimetre
- Communications Protocol : RS-232
- Includes : Circuit Board; RS-232 Cable voltage alternating current
- Networkable or Standalone : Yes
- Port Types : COM
- For Use With : VESDAnet network; Fire Alarm Control Panel volt
- Brand : Notifier
Sort
Others
Document Title
Document Type
File Size
Declaration of Conformity
0.37 MB
Data Sheet
Document Title
Document Type
File Size
0.31 MB
Document Title
Document Type
File Size
Declaration of Conformity
0.37 MB
0.31 MB
Product Number
SKU
Description
SLC-IM
Integration Module, 24V DC, 100mA, Includes Circuit Board, RS-232 Cable
SKU
Description
SLC-IM
Integration Module, 24V DC, 100mA, Includes Circuit Board, RS-232 Cable
