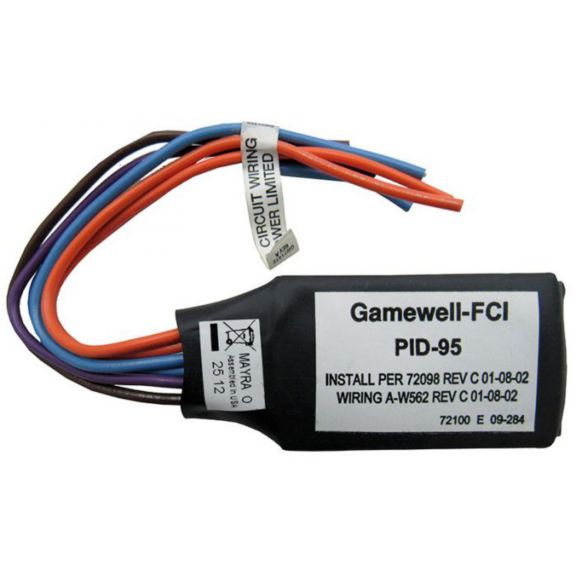

PID-95 Point Identification Device
PID-95 point identification devices monitor single Style B circuits and are designed to be mounted into electrical backboxes.
Overview
PID-95 point identification devices are interfaces between the non-powered, normally open, dry contact devices. It is designed to operate with the Gamewell-FCI®’s 600 Series and ILI95-E3 Series® of addressable-analog fire alarm control panels (FACPs). Point identification devices monitor single Style B circuits and are designed to be mounted into electrical backboxes.
Features & Benefits:- Compatible with the Gamewell-FCI 600 Series and ILI95-E3 Series systems
- Offers a plate-mounted version available for surface or flush mounting in the following dimensions: 4x4.688 inch (10.16x11.908 cm) double-gang backbox, and 4 inch (10.16 cm) square backbox
- Includes an LED for alarm annunciation
- Field-programmable
- Provides priority interrupt
- Monitors dry contact devices
- UL Standard 864 9th Edition
- UL Listed: S521
- FM Approved
- FDNY Approved
- CSFM: 7300-1703:0135
- ISO 9001 Certification
Specifications
Others
- Maximum Operating Humidity
- 85 Percentage
- Maximum Operating Voltage
- 21Vdc from Analog Addressable Module
- Operating Current Draw
- 1.5 milliampere
- End of Line Resistance
- 3.9 kO
- Alarm Current
- 0.0015 ampere
- Brand
- Gamewell-FCI
- Approved Location
- CSFM 7300-17030135
- ISO 9001 Certified
- UL Listed S521
- Detector Type
- Addressable Module
Others
- Maximum Operating Humidity
- 85 Percentage
- Maximum Operating Voltage
- 21Vdc from Analog Addressable Module
- Operating Current Draw
- 1.5 milliampere
- End of Line Resistance
- 3.9 kO
- Alarm Current
- 0.0015 ampere
- Brand
- Gamewell-FCI
- Approved Location
- CSFM 7300-17030135
- ISO 9001 Certified
- UL Listed S521
- Detector Type
- Addressable Module
- Maximum Operating Humidity : 85 Percentage
- Maximum Operating Voltage : 21Vdc from Analog Addressable Module
- Operating Current Draw : 1.5 milliampere
- End of Line Resistance : 3.9 kO
- Alarm Current : 0.0015 ampere
- Brand : Gamewell-FCI
- Approved Location : CSFM 7300-17030135|ISO 9001 Certified|UL Listed S521
- Detector Type : Addressable Module
Sort
Others
Document Title
Document Type
File Size
Engineering Specifications
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
Product Number
Part Number
Description
Add to list
GWPID-95
Point identification device for monitoring contact device(s), designed for concealed mounting within an electrical backbox.
GWPID-95P
Point Identification Device, Addressable, Mounted to Plastic Plate
SKU
Description
GWPID-95
Point identification device for monitoring contact device(s), designed for concealed mounting within an electrical backbox.
GWPID-95P
Point Identification Device, Addressable, Mounted to Plastic Plate
