Graphic Software

Managing Software

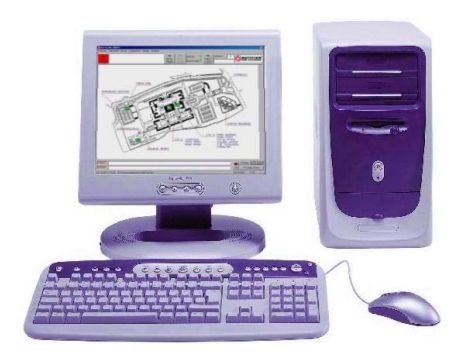

Notifier’s managing softwares use CEI-ABI communication protocol for NOTIFIER control units model AM2000, AM6000. It has multi-level graphic maps in standard bitmap format for Windows. It has function keys dedicated to the most common operations.

Notifier’s managing softwares use CEI-ABI communication protocol for NOTIFIER control units model AM2000, AM6000. It has connection to control units with optically-isolated interfaces RS-485 for distances up to 1.8 Km. It has multi-level graphic maps in standard bitmap format for Windows. It has function keys dedicated to the most common operations. It uses symbols on maps to operate on elements of the plant. It has library with graphic symbols on maps to view alarms, faults, active outputs, etc. It has temporary event list of 800 events.

It has text pages that can be combined with devices in the field to help the operator in the procedures to be carried out in the event of an alarm failure. It displays analogue values of fire and GAS sensors. It has storage on TREND file of analog values for selected points of the implant and visualization in the form of graphics of the same. It has automatic backup of the archive every 40,000 events.

Features & Benefits:
  • CEI-ABI communication protocol
  • Connection to control units with optically-isolated interfaces RS-485 for distances up to 1.8 Km
  • Multi-level graphic maps in standard bitmap format for Windows
  • Function keys dedicated to the most common operations
  • Uses symbols on maps to operate on elements of the plant
  • Library with graphic symbols on maps to view alarms, faults, active outputs, etc.
  • Text pages that can be combined with devices in the field to help the operator in the procedures to be carried out in the event of an alarm failure
Document Title
File Size
Date Added
SKU
Description
alt
SW-5N
Managing Software: Secondary Graphic Terminal
alt
SW-3N
Managing Software: Connectable To Max 32 Power Plants
alt
SW-1N
Managing Software: Connectable To 1 Control Unit
