Rotary Actuators

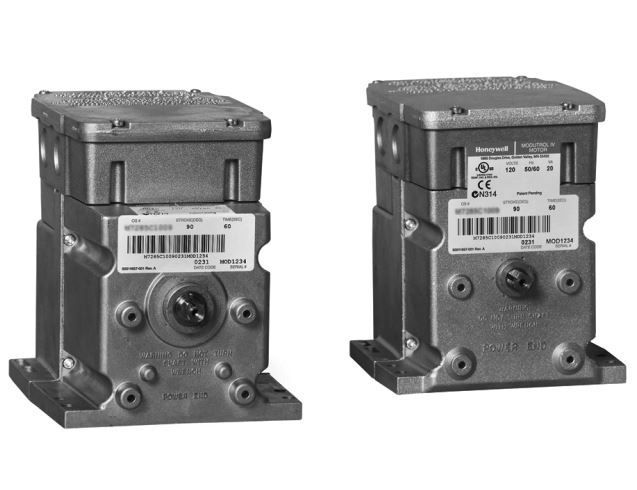

Series 90 Modutrol IV Motor

Series 90 Modutrol IV™ Motors are spring return and non-spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.

Series 90 Modutrol IV™ Motors are spring return and non-spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.

Features & Benefits:
  • Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 motors
  • Integral junction box provides NEMA 3 weather protection
  • Integral spring return returns motor to normal position when power is interrupted
  • Motor and circuitry operate from 24V AC; models available with factory installed transformer, or a field added internal transformer
  • Quick connect terminals are standard — screw terminal adapter is available
  • Adapter bracket for matching shaft height of older motors is available
  • Motors have field adjustable stroke (90° to 160°)
  • Die-cast aluminum housing
  • Integral auxiliary switches are available factory mounted, or can be field added
  • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke); other timings available
