Zone & Unitary Controllers
IQeco38 BACnet Controllers

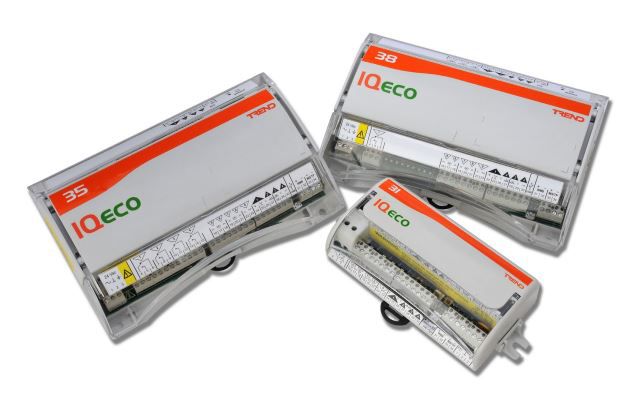

The IQ®eco38 terminal unit controller is for use with BACnet over MS/TP. They have 9 to 18 I/O channels and can be supplied fully programmable or with a fixed strategy.
Overview
The IQ®eco38 terminal unit controller is for use with BACnet over MS/TP. They have from 9 to 18 I/O channels, and can be supplied fully programmable or with a fixed strategy. It can communicate with other IQECOs over the BACnet MS/TP network and with Trend networked devices using an IQ4NC.
The IQECO can be purchased either as a fully programmable or a fixed strategy model. A wide range of strategies can be downloaded to the units to provide pre-configured functionality for a host of different applications. They are classified as Entry level (E), Basic (B) or Plus (P) and can be downloaded into the respective controllers. The fixed strategy controllers will allow a degree of configuration while the programmable models allow complete flexibility. Should it be necessary to upgrade from a fixed to programmable an unlock is available.Features & Benefits:
The IQECO can be purchased either as a fully programmable or a fixed strategy model. A wide range of strategies can be downloaded to the units to provide pre-configured functionality for a host of different applications. They are classified as Entry level (E), Basic (B) or Plus (P) and can be downloaded into the respective controllers. The fixed strategy controllers will allow a degree of configuration while the programmable models allow complete flexibility. Should it be necessary to upgrade from a fixed to programmable an unlock is available.Features & Benefits:
- Fully compatible with the Trend system
- BACnet over MS/TP (WSP certified)
- Non-volatile memory, no battery required
- Inputs configurable by software (no links)
- Energy efficient strategies available
- eu.bac
