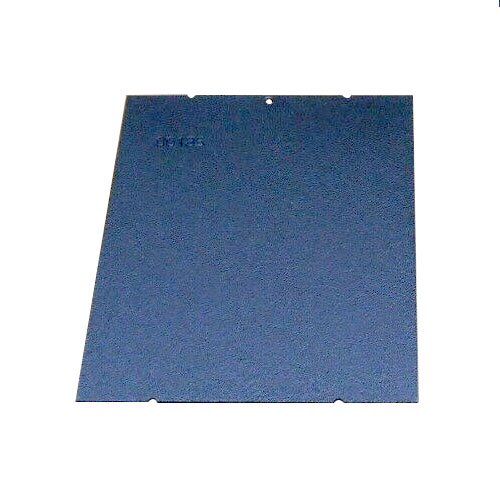

E3 Series® C Size Cabinets Assembly

The E3 Series® Expandable Emergency Evacuation System by Gamewell-FCI offers several cabinet size options. The E3 Series System is a modular design that allows a wide range of configurations to form an integrated, distributed fire alarm system. These cabinet options allow for sturdy and modern installations. The E3 Series cabinet assembly is a compact, wall-mounted enclosure. A typical cabinet includes a back box and an outer locking door. In addition, there are several inner door options and mounting plates to accommodate a variety of E3 Series sub-assemblies. Each cabinet back box includes mounting patterns for plates to allow the installer to arrange and secure the sub-assemblies to the back box. The back box knockouts are also positioned at numerous points to allow a conduit access into the enclosure

• IBC Seismic Certified
• 16-gauge steel back box
• Offers cabinets available in either black or red
• Provides removable cabinet outer and inner doors
• Includes an inner door bonding strap used to provide electrical continuity for grounding
• Furnished back box and door ground studs provide positive grounding. 180° opening door with full clearance
• Designed with a 90° opening door with zero clearance
• Contains a key lock with a quarter turn latch
• Optional Trim Ring accessories available

• UL Listed: S1869
• ULS 864, 10th Edition
• UL 2572, 2nd Edition
• MEA Approved: 6177
• MEA FDNY: COA# 6077 CSFM: 7165-1703-0125
• FM Approved: 3025415
