    Manual Call Points/Pull Stations

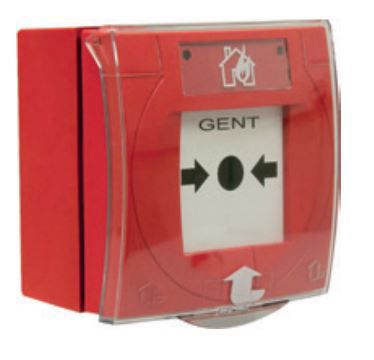

    Manual Call Point

    The Manual Call Points by GENT, Honeywell are for the Vigilon and Nano system that are easy to install and enables personnel to raise an alarm in the event of a fire incident.

    Overview

    The Manual Call Points by GENT, Honeywell for the Vigilon and Nano system are easy to install and can be mounted on standard installation back boxes or bespoke red back boxes for surface mounting. Every manual call point is continuously monitored ensuring a trigger is responded to in less than one second system wide.

    The range includes options for glass and resettable elements and lift-up protective covers. A keyswitch version is also available for areas where tampering or vandalism is expected.

    An Environmentally Protected (EP) version with Ingress protection rating IP67 is also available, complete with resettable element, protective cover and backbox.

    Features & Benefits:
    • Resettable or break glass
    • Lift up protective covers
    • Keyswitch
    • Weatherproof version (IP67) suitable for external areas
    • Up to 200 per loop
    • Integral short-circuit isolator
    • Surface or Semi Flush options
    • STANDARD
    • Standard IP43
    • EP version IP67
    • EN54 part 11 & 17
