Controller Expansion Boards

Expand the reach of the access controller through specifically engineered expansion boards to support one or two doors, multiple input points or multiple controlled output points.

• Features:
• •RS-485 connectivity to Controller
• •AES 256 bit data encryption between M-Series Controllers and Series 3 expansion boards
• •Reader/door interface boards support multiple reader communications protocols such as OSDP, OSDP Secure Channel, keypads, biometric readers, Wiegand, clock and data, magnetic stripe, F/2F and supervised F/2F

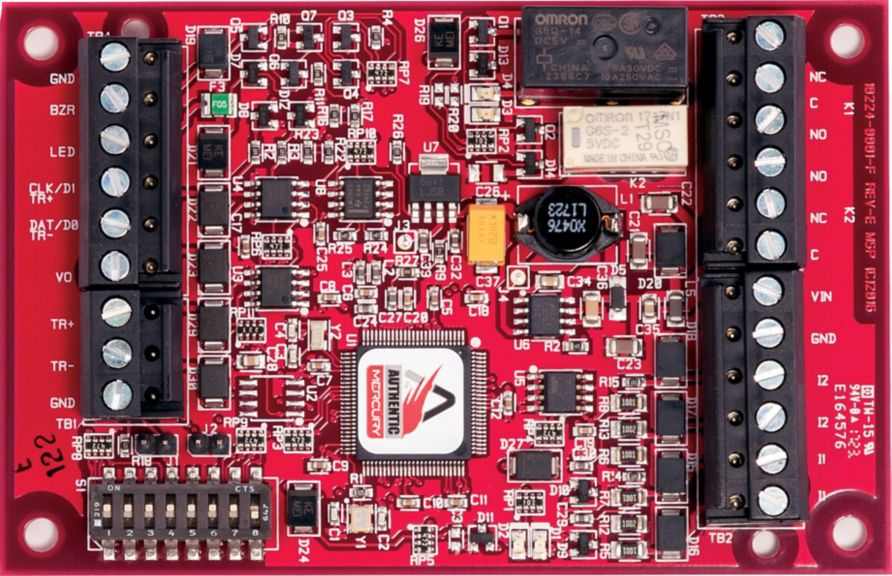

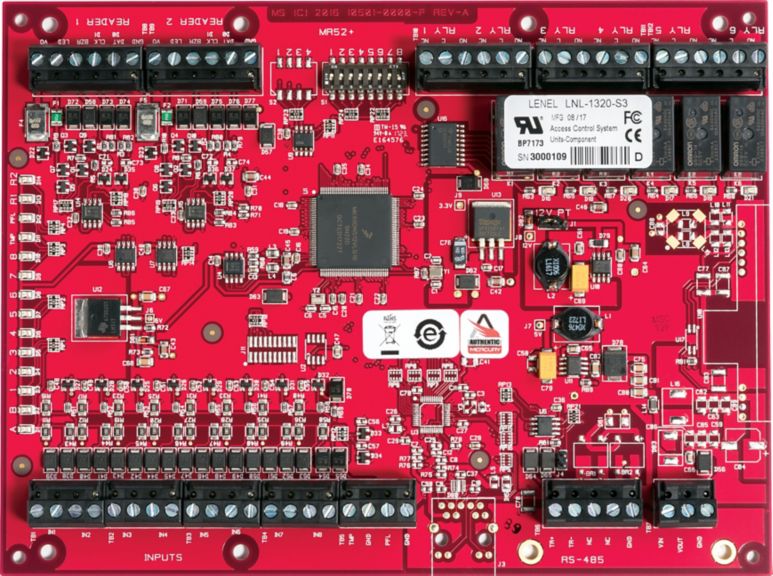

• •Specific expansion boards that support either one or two door expansions

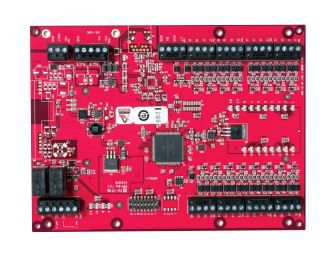

• •An expansion board that supports 16 supervised inputs, for remote monitoring of sensors (alarms points)

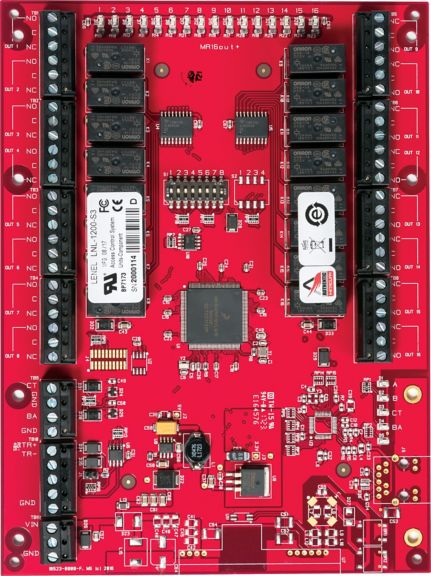

• •An expansion board that supports 16 relay outputs, for remote control of power devices, i.e., horns, bells, lights, sounders, bollards, gates, etc…

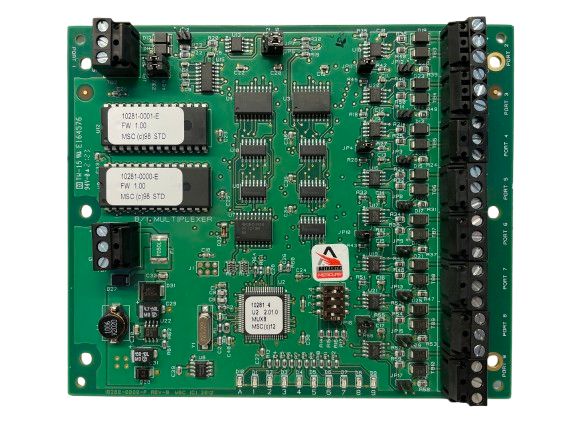

• •A communications splitter board that divides a single RS-485 bus into eight buses, to accommodate star topology wiring deployments (instead of a bus wiring deployment).
• Benefits:
• •OSDP Protocol - Supports OSDP and Secure Channel protocol for reader communications connectivity, file transfer and extended applications such as biometrics and federal government profile support
• •Enhanced Security - Embedded crypto memory chip provides secured layer of encryption to protect sensitive data
• •Versatile Interoperability - Same reliable interface and identical footprint as the Series 2 IO modules, enabling seamless upgrades for existing deployments

• Compliance
• •UL 294 Recognized
• •FCC Part 15 Class A
• •CE Compliant
• •RoHS (2011/65/EU & 2015/863)
• •EU REACH (1907/2006)
• •California Proposition 65
