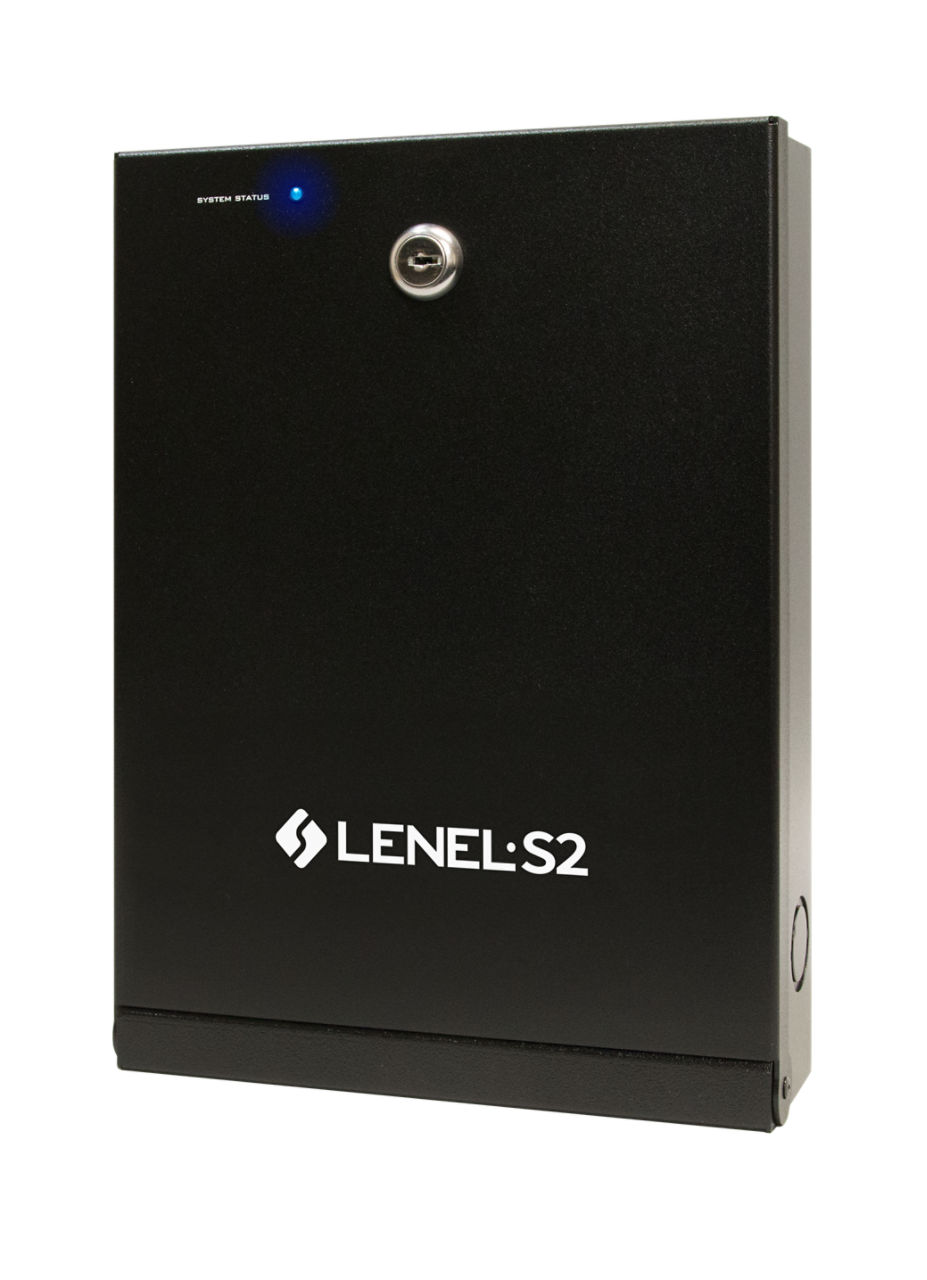

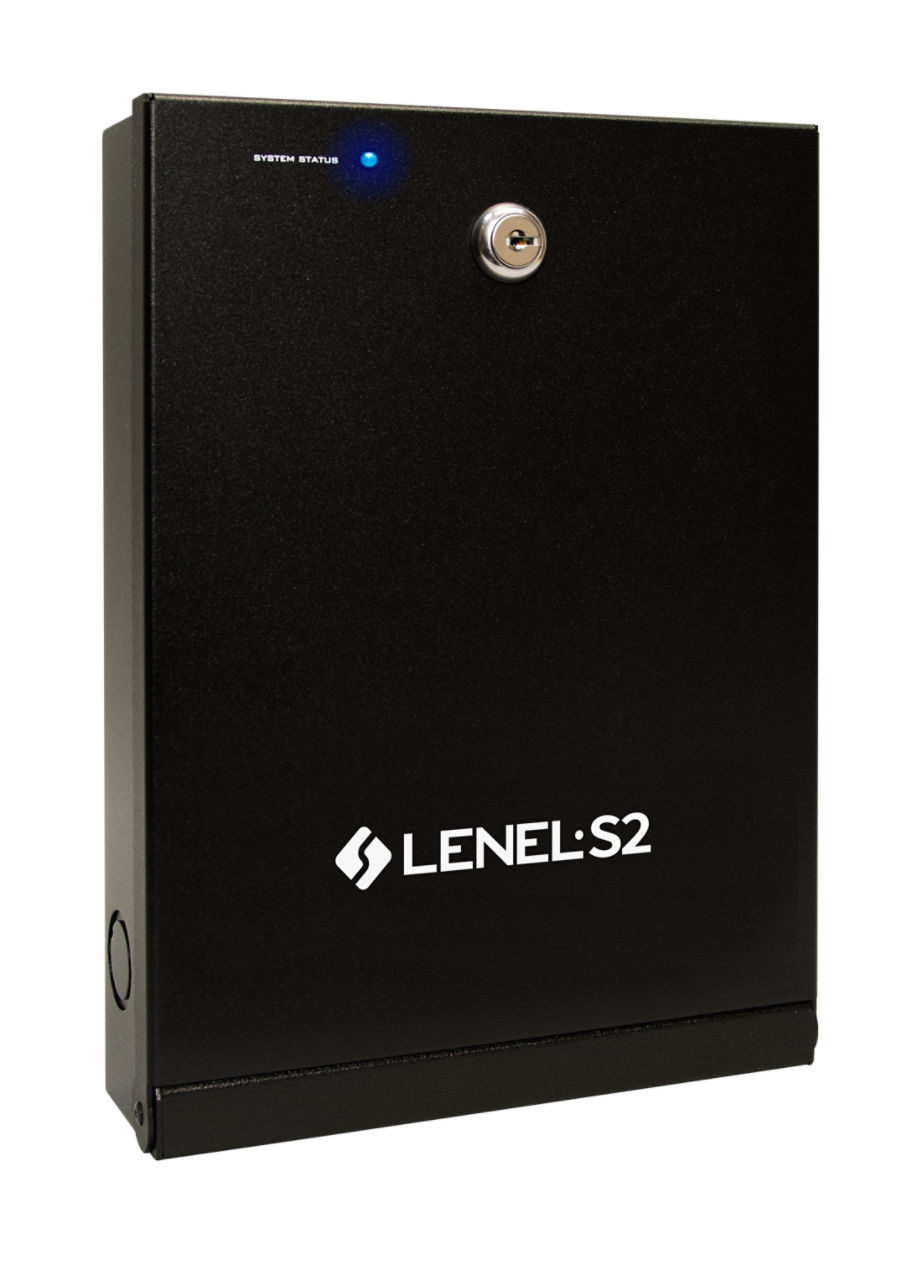

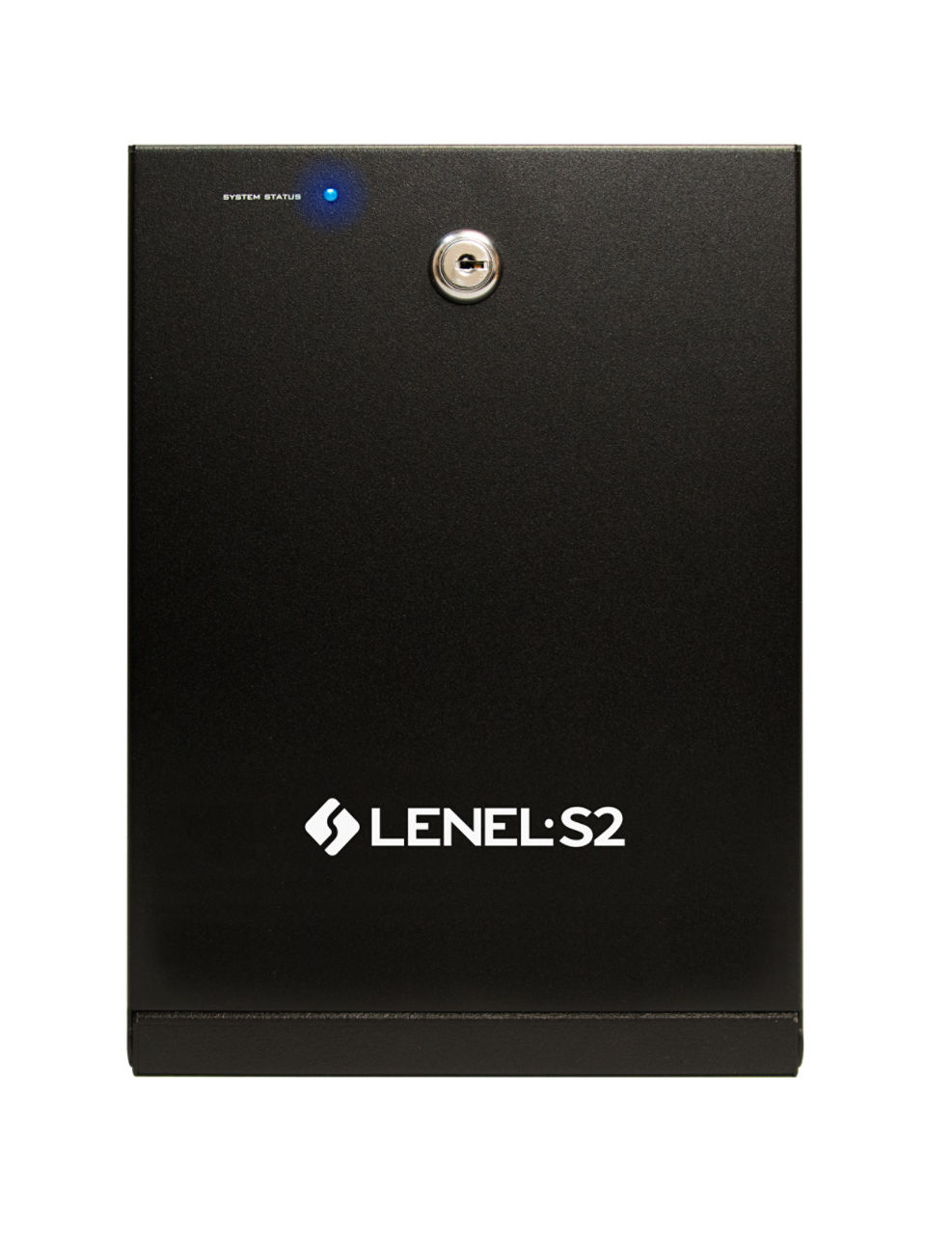

NetBox MicroNode Plus

The MicroNode Plus panel supports up to two portals, four relay outputs with wet/dry selection, four inputs with programmable levels of supervision, and one temperature sensor input. The 12VDC auxiliary output can power devices such as a Request to Exit device or an alarm sounder.

Designed for localized access control and event monitoring, the MicroNode Plus panel is also an ideal retrofi t solution. The seamless upgrade from legacy two-reader panels to the MicroNode Plus panel can be made without replacing readers, inputs or lock outputs

• Key Features
• Access Control
•  Reader Support: Interfaces with Wiegand and keypad reader
• technologies
•  Input/Output Assignment: Enables assignment of four input and
• four output relays to control doors and other end point devices
•  Temperature Input: Includes one analog temperature
• sensor input
•  Retrofi t Solution: Replaces legacy two-reader panels without
• requiring new readers, inputs or lock outputs
• System
•  LenelS2 System Node: Handles distributed access control and
• event monitoring
•  Offl ine Availability: Maintains access control capabilities even
• when connectivity to the NetBox controller is lost
•  Intuitive Confi guration: Utilizes embedded web interface for
• initial setup
•  Automatic Discovery: Automatically connects to and
• authenticates with the NetBox controller upon confi guration
•  Power Options: Offers PoE Plus, PoE or 12VDC 5A power
