I/O Modules

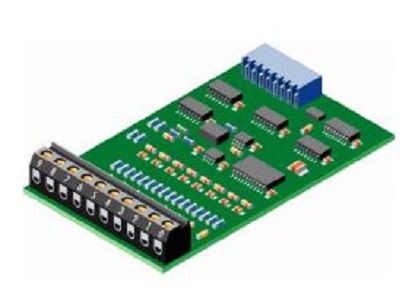

PCD2 and PCD1 Analogue Input Module
With the help of plug-in analogue input modules, you can expand and individually adapt the functions of the PCD2 and PCD1.
Overview
The numerous analogue modules allow complex control tasks or measurements. Depending on the speed of the AD converter, the resolution is between 8 and 16 bits. The digitised values can be processed further direct in the project in the PCD2 and PCD1. The large number of different modules means that the most suitable module is available for almost any requirement.
Sort
Document Title
Document Type
File Size
0.13 MB
Product Number
SKU
Description
PCD2.W305
Analogue input module with galvanic isolation, 7 channels, 12 bits, 0...10 V
PCD2.W325
Analogue input module with galvanic isolation, 7 channels, 12 bits, ±10 V
SKU
Description
PCD2.W305
Analogue input module with galvanic isolation, 7 channels, 12 bits, 0...10 V
PCD2.W325
Analogue input module with galvanic isolation, 7 channels, 12 bits, ±10 V
