ECC200 Edge Network Controller

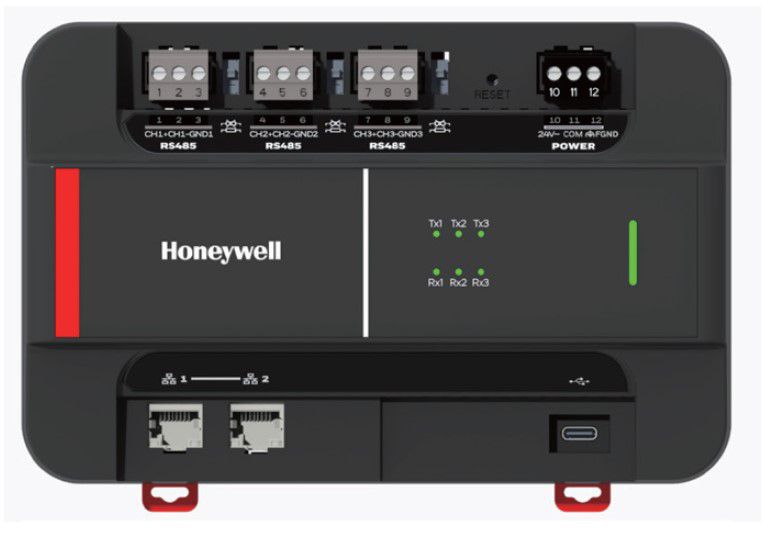

ECC200 compact high-performance network controller. It supports multiple protocols at the same time, which is convenient for connecting remote I/O and field controller.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
- High performance: Dual-core processor: Arm Cortex-A9 Main frequency: 800mhz; Arm Cortex-M4 • Main frequency: 227MHz
- Storage: RAM 1 Gbyte; Flash memory 4 Gbyte
- OS is LINUX & RTOS, The kernel is more efficient and stable, while meeting the requirements of real-time performance.
- BACnet Object: Up to 2000 points
- Three isolated RS485 ports supports BACnet MS/TP or Modbus RTU protocol (selected by users)
- Two Ethernet ports, support: Ring/Daisy-Chain/Star Topology. help user for saving network resources also reduce the cost of implementation.
- Expandable up to 16 remote IOs (PUC5533-EM2/PUC6002-EM2), Maximum 256 Physical Datapoints
- RSTP support (fast spanning tree protocol). When the network structure changes, can recover the network faster and ensure the real-time data transmission.
- Programmable using Alaya Tool.
- Honeywell Cyber Security compliance (ANSI/ISA 62443-4-2) , encryption chip embedded, ensure system security.
- CUL60730-1
- UL60730-1
- EN60730-1
- CE
- RoHS 2.0
- IEEE 802.3
- BTL B-BC , B-RTR,B-BBMD(Rev 18)
