Thermostats

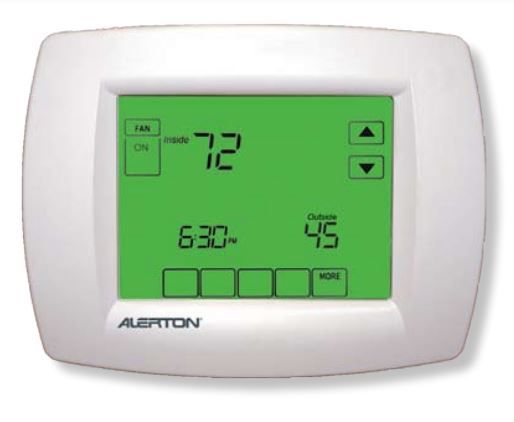

VLD-362 Controller

VLD is a communicating, intelligent sensor-controller combination by Alerton with built-in temperature and humidity sensors that targets common controls applications.

Overview

Alerton’s BACnet®-based VisualLogic® Display (VLD) is a communicating, intelligent sensor-controller combination with built-in temperature and humidity sensors that targets common controls applications such as roof top units, fan-coil units and heat pumps. It provides a cost-effective solution to meet in-room hotel requirements—an easy-to-use interface, easy-to-see digital display, and Celsius/Fahrenheit change over—where you already have Alerton systems in public or common areas. A versatile wireless addition provides door and occupancy sensor function. Direct digital control (DDC) enables powerful control of units, sophisticated, customizable displays, and a superb user interface. Pre-configured applications enable powerful control of units using a sophisticated user interface.

The VLD combines a configurable display and a VisualLogic controller, making it ideal for retrofits of thermostat installations and places where a single-piece combination is easier to install. The VLD communicates over an MS/TP LAN so it operates as a fully functioning BACnet controller and easily integrates with the building automation system. Alerton can also provide seamless integration with hotel reservation and check-in systems with the BCM-HOTEL.

Features & Benefits:
  • Capable: Internal temperature and humidity sensors, 3 universal inputs, 6 binary outputs, 2 analog outputs, factory-loaded applications
  • Interoperable: BACnet-compliant on MS/TP LAN at up to 76.8 Kbps. Versatile Fully DDC programmable, capable of standalone or integrated operation
  • Flexible: Fully programmable, configurable display, easy to locate wireless sensors
  • Powerful: Offers control of a second VLC using peer-to-peer commands. Modes of operation allow control based on occupancy or schedules
  • Fast: Internal DDC logic loop of 100 msec
  • Visually appealing: Based on industry standard platform, sleek sophisticated design with touch screen display
Certifications:
  • Listed Underwriters Laboratory for Open Energy Management Equipment (PAZX) under the UL Standard for Safety 916
  • Listing includes both U.S. and Canadian certification
  • EMC Directive (European CE Mark) EN 60950 (VLD-362-FF model only)
  • FCC Part 15, Class B
Specifications

Others

  • Communications Protocol
    • BACnet MS/TP LAN
  • Switch Configuration
    • 24 @ 0.5 A
  • Brand
    • Alerton
  • Mounting Type
    • Wall inch
  • Product Type
    • Controller Degrees Celsius
  • Thermostat Functions
    • Fixed

Others

  • Communications Protocol
    • BACnet MS/TP LAN
  • Switch Configuration
    • 24 @ 0.5 A
  • Brand
    • Alerton
  • Mounting Type
    • Wall inch
  • Product Type
    • Controller Degrees Celsius
  • Thermostat Functions
    • Fixed
  • Communications Protocol : BACnet MS/TP LAN
  • Switch Configuration : 24 @ 0.5 A
  • Brand : Alerton
  • Mounting Type : Wall inch
  • Product Type : Controller Degrees Celsius
  • Thermostat Functions : Fixed
Sort
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
VLD-362
VisualLogic Display controller, 2 fixed Inputs, 3 universal Inputs, 6 binary Outputs, 2 Analog Outputs.
alt
VLD-362-FF
VisualLogic Display controller, Non-programmable, 2 fixed Inputs, 3 universal Inputs, 6 binary Outputs, 2 Analog Outputs
SKU
Description
alt
VLD-362
VisualLogic Display controller, 2 fixed Inputs, 3 universal Inputs, 6 binary Outputs, 2 Analog Outputs.
alt
VLD-362-FF
VisualLogic Display controller, Non-programmable, 2 fixed Inputs, 3 universal Inputs, 6 binary Outputs, 2 Analog Outputs
