Infrared user controller, as part of the LightSpot HD and LightSpot tools range
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
QuickControl is ideal for easy operation of the LightSpot HD in daily use.
Features & Benefits:
• Manual activation/deactivation
• Brightness setting
• Six light scenes adjustable and retrievable
• Wall mount included in delivery
• Four overrun settings - 5, 10, 20 and 40 minutes
• Presence mode, on and off
• Activate/deactivate the brightness sensor
• Walk test
• Setting the desired brightness value using a suitable luxmeter
The ten-button HC5A offers the user temporary on/off override and light level adjustment along with the ability to set and recall up to six different lighting ‘scenes’. Supplied with wall bracket. See information on individual detectors to check compatibility.
Technical Data:
(HC5A) BATTERY TYPE: 3V DC CR2032 Lithium Button Cell
TYPICAL BATTERY LIFE: 3 years
DIMENSIONS: 135mm (h) x 44mm (w) x 6mm (d)
WEIGHT: 45g approx.
OPERATING RANGE: 2.5m when used with standard Honeywell Detectors and up to 16m when used with Hi-Bay types (’HB’ suffix in part number)
Features & Benefits:
• Manual activation/deactivation
• Brightness setting
• Six light scenes adjustable and retrievable
• Wall mount included in delivery
• Four overrun settings - 5, 10, 20 and 40 minutes
• Presence mode, on and off
• Activate/deactivate the brightness sensor
• Walk test
• Setting the desired brightness value using a suitable luxmeter
The ten-button HC5A offers the user temporary on/off override and light level adjustment along with the ability to set and recall up to six different lighting ‘scenes’. Supplied with wall bracket. See information on individual detectors to check compatibility.
Technical Data:
(HC5A) BATTERY TYPE: 3V DC CR2032 Lithium Button Cell
TYPICAL BATTERY LIFE: 3 years
DIMENSIONS: 135mm (h) x 44mm (w) x 6mm (d)
WEIGHT: 45g approx.
OPERATING RANGE: 2.5m when used with standard Honeywell Detectors and up to 16m when used with Hi-Bay types (’HB’ suffix in part number)
Specifications
Others
- Brand
- Honeywell Lighting Controls
Others
- Brand
- Honeywell Lighting Controls
- Brand : Honeywell Lighting Controls
Name
Date
Size
_blank
Brand@brand|Mounting_Type@mounting_type|Overall_Depth@overall_depth|Overall_Height@overall_height|Overall_Width@overall_width|Regulatory_Approvals@regulatory_approvals|Supply_Voltage@supply_voltage
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
HC5A

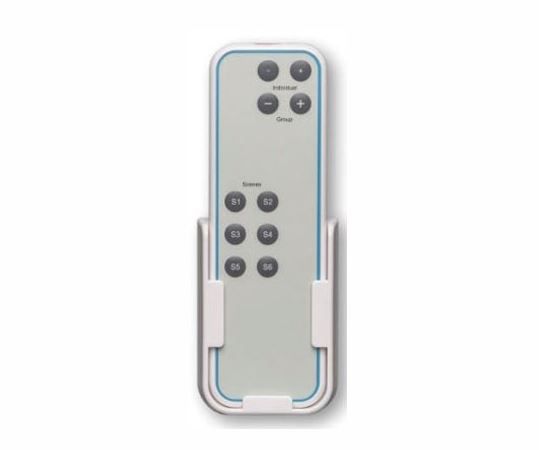

Universal Hand-held Controller, cw Wall Bracket for LightSpot detectors
