I/O Modules

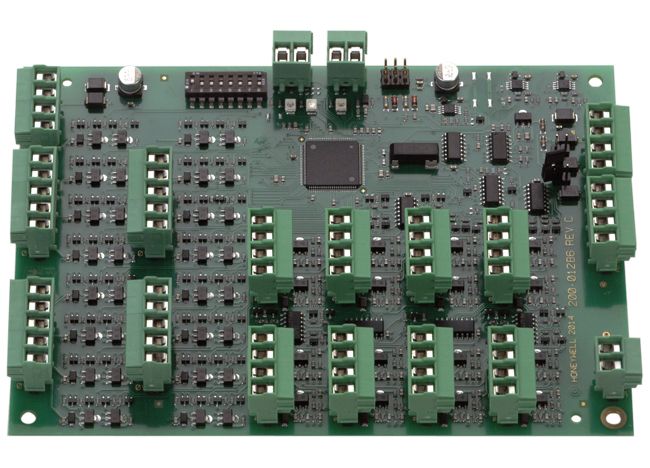

IB2 16 I/O Expander

The IB2 16 I/O Expanders are intended to expand a MB-Secure series intruder panel with additional detector group inputs and outputs. The connection to the MB-Secure panel is established via BUS-2(1000m) or the IB2-Bus (2000m).

Overview

The IB2 16 I/O Expanders are intended to expand a MB-Secure series intruder panel with additional detector group inputs and outputs. The connection to the MB-Secure panel is established via BUS-2(1000m) or the IB2-Bus (2000m), whilst the module can be operated in in the panel housing as well as in a separate housing. For connection of hardwired detectors there are 16 deletable inputs in double-balanced technology available. By this up to 3 contacts of a detector can be connected in series and supervised by various resistor values. With this each input can handle all signals of a detector (alarm, fault, tamper and line break) in an efficient and economical way.

For operation of latching sensors e.g. passive glass break sensors each input provides a reset function. For connection of hardwired detectors there are 16 inputs in EOL or double-balanced technology. Also the detector group inputs can be programmed and operated as active-low outputs. Additional to these the module provides 16 free programmable active high outputs with 12 V 50 mA, which can be also used for operation of the relays like on the 013941.

Features & Benefits:
  • 1 IB2-BUS or BUS-2 line to MB-Secure
  • Maximum distance with IB2-BUS up to 2000m, with BUS-2 up to 1000m
  • 16 hardwired detector group inputs in double balanced technology, all resettable
  • Detector group inputs alternatively configurable as active low outputs, each separately
  • 16 outputs active high 12V DC
  • 1 input for tamper contact
  • Auxiliary power supply input 12V
  • 3 LEDs to display system status
Certifications:
  • G115068, Class C
  • EN 50131-1 Grade 3
Specifications

Others

  • Number of Inputs
    • 16 volt
  • Brand
    • Honeywell Security
  • Product Type
    • I/O Expander Degrees Celsius

Others

  • Number of Inputs
    • 16 volt
  • Brand
    • Honeywell Security
  • Product Type
    • I/O Expander Degrees Celsius
  • Number of Inputs : 16 volt
  • Brand : Honeywell Security
  • Product Type : I/O Expander Degrees Celsius
