Zone & Unitary Controllers

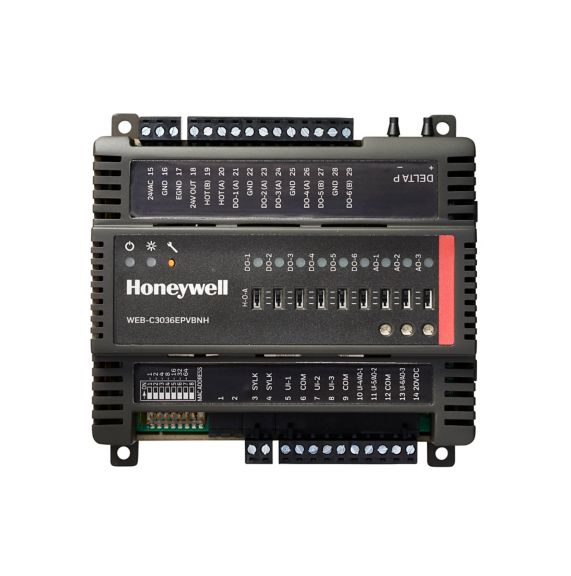

CIPer™ Model 30 Controller
Scalable, fast and flexible to handle a range of devices. CIPer Model 30 is an Internet Protocol (IP) based, Niagara 4 controller that can be used for VAV, unitary, equipment and plant applications.
Overview
CIPer Model 30 is an Internet Protocol (IP) based “edge” controller that can be used for VAV, unitary, equipment and plant applications. CIPer Model 30 is programmable and configurable using the open Niagara 4 Framework. Each controller is equipped with a four-port Gigabit network switch, that can integrate with broader IP peripheral devices including cameras, variable frequency drives, utility meters, lighting systems, etc. These controllers can be used to aggregate information (including realtime data, alarms, trends, and history). Additional physical I/O points available using expansion IO modules.
Features & Benefits:- Industry’s only Niagara-based controller with a 1GBPS, 4-port switch
- Connects with IP peripheral devices at speeds up to 10 times faster than using “Fast Ethernet” and 1,000 times faster than MS/TP controllers
- Communicates over both TCP/IP (FOXS) and BACnet IP protocols
- Built-in analytics help create smarter, efficient systems
- Easy integration of legacy systems
- Ready-to-use wiresheet, alarming, history, schedules, web server, graphics and Haystack Tagging
- Rapid Spanning Tree Protocol to daisy chain up to 255 controllers on a single bus
- Supports up to 40 controllers in redundant ring configuration
- Uses standard industry framework, reducing training costs and proprietary tools
- WEBS HMI Touchscreen Monitor compatible
- Expand input and output capabilities even further with CIPer Model 30 I/O Expansion Modules
- BACnet B-BC listed to support a wide range of applications
- UL/CUL (E87741) Listed under UL 60730-1 and CSAE60730-1, UL 60730-2-9:2010
- Meets FCC Part 15, Subpart B:2017, Class B (RadiatedEmissions) Requirements
- Meets Canada ICES-003:2016
- EMC Directive: 2014/30/EU. Standards Applied include EN 61000-6:2005, EN 61000-6-3:2007 + A1, and EN 60730-1: 2011, EN 60730-2-9: 2010
- RoHS Directive: 2011/65/EU. Standards Applied include EN 50581: 2012
- World-class security includes FIPS 140-2 Level 1 Compliance
Specifications
Others
- Number of Digital Outputs
- 6
- Maximum Operating Humidity
- 95% (Non-Condensing)
- Minimum Operating Humidity
- 5% (Non-Condensing)
- Communication Technology
- BACnet
- Brand
- Honeywell BMS NA
- Communications Protocol
- BACnet
- BACnet IP
- FOX
- FOXS
- HTTP
- HTTPS
- SNMP
- Control Software
- WEBs-N4 voltage alternating current
- For Use With
- WEBs-N4 volt
- Number of Universal Inputs
- 6
Others
- Number of Digital Outputs
- 6
- Maximum Operating Humidity
- 95% (Non-Condensing)
- Minimum Operating Humidity
- 5% (Non-Condensing)
- Communication Technology
- BACnet
- Brand
- Honeywell BMS NA
- Communications Protocol
- BACnet
- BACnet IP
- FOX
- FOXS
- HTTP
- HTTPS
- SNMP
- Control Software
- WEBs-N4 voltage alternating current
- For Use With
- WEBs-N4 volt
- Number of Universal Inputs
- 6
- Number of Digital Outputs : 6
- Maximum Operating Humidity : 95% (Non-Condensing)
- Minimum Operating Humidity : 5% (Non-Condensing)
- Communication Technology : BACnet
- Brand : Honeywell BMS NA
- Communications Protocol : BACnet|BACnet IP|FOX|FOXS|HTTP|HTTPS|SNMP
- Control Software : WEBs-N4 voltage alternating current
- For Use With : WEBs-N4 volt
- Number of Universal Inputs : 6
Sort
Sales Sheet
Document Title
Document Type
File Size
4.44 MB
Installation Instructions
Document Title
Document Type
File Size
Manuals and Guides
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
4.44 MB
Product Number
SKU
Description
WEB-C3036EPUBNH
CIPer Model 30 Unitary Controller, Niagara N4 license for BACnet, 150 Points, 3 Devices, SMA included.=
WEB-C3036EPVBNH
CIPer Model 30 VAV Controller, Niagara N4 license for BACnet, 150 Points, 3 Devices, SMA included.
SKU
Description
WEB-C3036EPUBNH
CIPer Model 30 Unitary Controller, Niagara N4 license for BACnet, 150 Points, 3 Devices, SMA included.=
WEB-C3036EPVBNH
CIPer Model 30 VAV Controller, Niagara N4 license for BACnet, 150 Points, 3 Devices, SMA included.
