Manual Call Points/Pull Stations

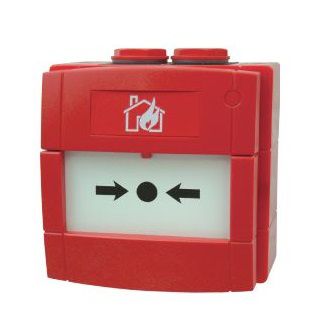

KAC Waterproof Call Point

Waterproof Call Point by KAC is an IP67 sealed manual call point product. The WCP4A product version is supplied with a double pole changeover set of contacts.

The outdoor Waterproof Call Point by KAC is an IP67 sealed manual call point product. The enhanced environmental protection allows the unit to be installed in many external environments where water and dirt are likely to be present, making it a true waterproof and outdoor product. Installation time and ultimately cost, are of paramount importance to any fire or security installer. The WCP range directly reflects this need by providing a unique ‘plug and play’ concept designed specifically to reduce installation time. All new WCP products utilise a special terminal block, where all initial installation cabling is terminated. This terminal block is then simply connected to the back of the WCP. Simple, but effective with no re-termination required and no time wasted. In addition, all WCP products are supplied with three standard 20mm threaded entries, accommodating all types of surface wiring installations.

Features & Benefits:
  • Unique ‘Plug & Play’ installation concept
  • Total ‘Flex-Ability’ in the choice of operating element
  • Anti-Tamper facility
  • Enhanced aesthetics and compact design
Certifications:
  • CPD Approval
  • LPCB Certified
  • IP67
  • EN54-11 Compliant

Others

  • Contact Ratings
    • 2 A @ 30 Switching voltage direct current
  • Auxiliary Contact Circuit Ratings
    • 2A @ 30 VDC Switching
  • Minimum Operating Ambient Temperature
    • -25 degree Celsius
  • Brand
    • KAC
    • System Sensor
  • Maximum Operating Humidity
    • 93Percentage
  • Material
    • Polycarbonate/ABS

Others

  • Contact Ratings
    • 2 A @ 30 Switching voltage direct current
  • Auxiliary Contact Circuit Ratings
    • 2A @ 30 VDC Switching
  • Minimum Operating Ambient Temperature
    • -25 degree Celsius
  • Brand
    • KAC
    • System Sensor
  • Maximum Operating Humidity
    • 93Percentage
  • Material
    • Polycarbonate/ABS
  • Brand : KAC|System Sensor
  • Maximum Operating Humidity : 93Percentage
  • Material : Polycarbonate/ABS
  • Contact Ratings : 2 A @ 30 Switching voltage direct current
  • Auxiliary Contact Circuit Ratings : 2A @ 30 VDC Switching
  • Minimum Operating Ambient Temperature : -25 degree Celsius
SKU
Description
alt
W4A-G000SF-K013-13
WCP4A-FE1140-F 218
alt
W4A-G000SF-K013-12
Waterproof Call Point: WCP4A: N\O or N\C Contacts: 30V DC: Green: Surface: Flexi: EDR Marking
alt
W4A-G000SF-K013-11
Waterproof Call Point: WCP4A: N\O or N\C Contacts: 30V DC: Green: Surface: Flexi: Plain Marking
alt
W4A-Y000SF-K013-11
WCP4A-FE1140-PLAIN
alt
W4A-W000SG-G063-01
WCP4A-GL1376-F 091
alt
W4A-R000SF-K013-01
Waterproof Call Point: WCP4A: N\O or N\C Contacts: 30V DC: Red: Surface: Flexi
alt
W4A-G000SG-STCK-12
WCP4A-GL1140-EDR
alt
W4A-G000SG-R030-01
WCP4A-GL1140--F 159
alt
W4A-G000SG-K013-12
Waterproof Call Point: WCP4A: N\O or N\C Contacts: 30V DC: Green: Surface: Glass: EDR Marking
alt
W4A-B000SF-K013-11
WCP4A-BLUE-FE1140-PLAIN
