Gas Detectors
Li-ion Tamer Multi Output System UL certified
Discontinued
Li-ion Tamer Multi Output System
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until

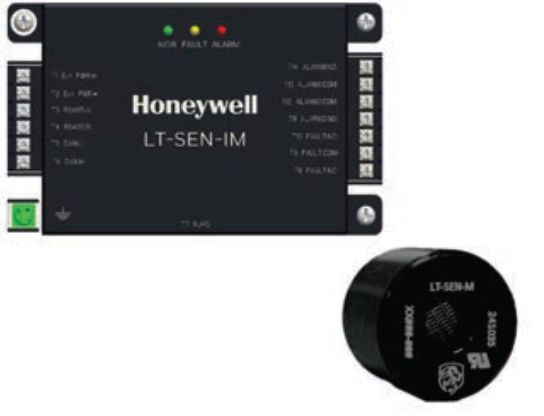

Assembly comprises Li-ion Tamer G2+ sensor and Interface Module. Provides relays, Modbus 485 and CANbus outputs
Features & Benefits:
Features & Benefits:
- Ultra-sensitive sensor provides the earliest possible warning of failing li-ion battery
- Compatible with different li-ion battery chemistries, capacities and form factors enabling reliable performance
- Advanced algorithms ensure reliable detection
- Low power consumption
- Robust sensing technology (MOX) that ensures extended sensor life
- Configurable communication protocols including Relay outputs and Modbus/ CANbus selection communication
- SKU: LT-SEN-M
- UL 2075 (H2 – provincial) – NFPA 855/ NFPA 69
- ETL listed to UL 61010, CSA 22.2 NO. 61010
- EN 61326 for EU Directive (2014/30/EU)
- RoHS 3 EU 2015/863
- CE, UKCA, FCC
- SKU: LT-SEN-IM-UL
- UL864
- UL61010-1
- RoHS EN50581-2002
- EMI EN55011-2010
- EMC EN61326-1-2021
Specifications
Others
- Minimum Operating Ambient Temperature
- -10 to 50 °C
- Minimum Operating Humidity
- 20 % RH (non-condensing) % RH
- Maximum Operating Humidity
- 90 % RH (non-condensing) % RH
- Brand
- Li-ion Tamer
- Technical Data
- Minimum Sensitivity: 10 ppm/sec
- Gases Detected
- Lithium-ion battery electrolyte solvent vapors and hydrogen gas
- Features
- Lifetime: >10 years
- Minimum Response Time: 5 seconds
Others
- Minimum Operating Ambient Temperature
- -10 to 50 °C
- Minimum Operating Humidity
- 20 % RH (non-condensing) % RH
- Maximum Operating Humidity
- 90 % RH (non-condensing) % RH
- Brand
- Li-ion Tamer
- Technical Data
- Minimum Sensitivity: 10 ppm/sec
- Gases Detected
- Lithium-ion battery electrolyte solvent vapors and hydrogen gas
- Features
- Lifetime: >10 years
- Minimum Response Time: 5 seconds
- Minimum Operating Ambient Temperature : -10 to 50 °C
- Minimum Operating Humidity : 20 % RH (non-condensing) % RH
- Maximum Operating Humidity : 90 % RH (non-condensing) % RH
- Brand : Li-ion Tamer
- Technical Data : Minimum Sensitivity: 10 ppm/sec
- Gases Detected : Lithium-ion battery electrolyte solvent vapors and hydrogen gas
- Features : Lifetime: >10 years|Minimum Response Time: 5 seconds
Name
Date
Size
_blank
Gases_Detected@gases_detected|Minimum_Operating_Ambient_Temperature@minimum_operating_ambient_temperature|Supply_Voltage@supply_voltage
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
LT-SEN-IM-UL

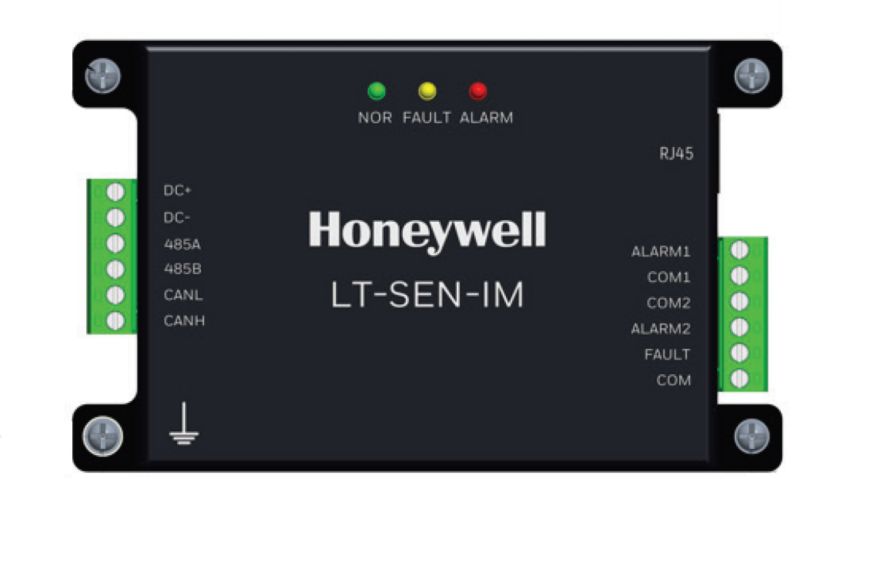

Li-ion Tamer Interface Module UL certified
https://honeywell.scene7.com/is/image/Honeywell65/HBA-Fire-LT-SEN-IM-UL
LT-SEN-IM-UL
Li-ion Tamer Interface Module UL certified
https://honeywell.scene7.com/is/image/Honeywell65/HBA-Fire-LT-SEN-IM-UL
LT-SEN-M

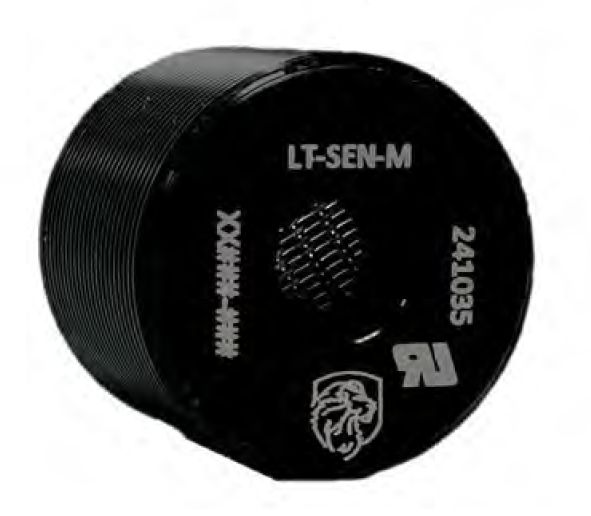

Li-Ion Tamer monitoring sensor
