Air Quality Sensors

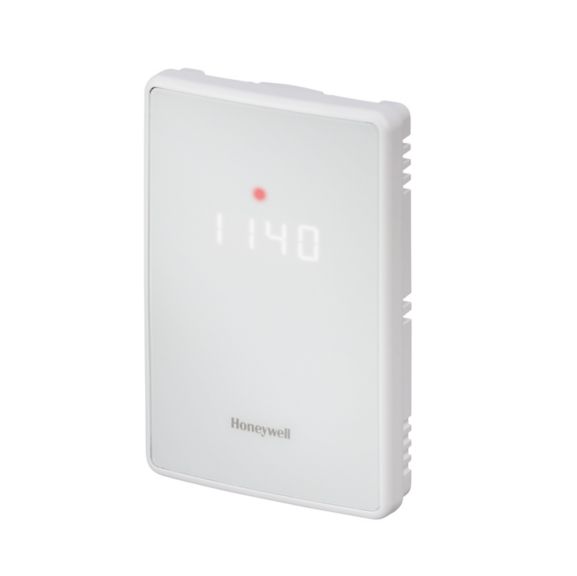

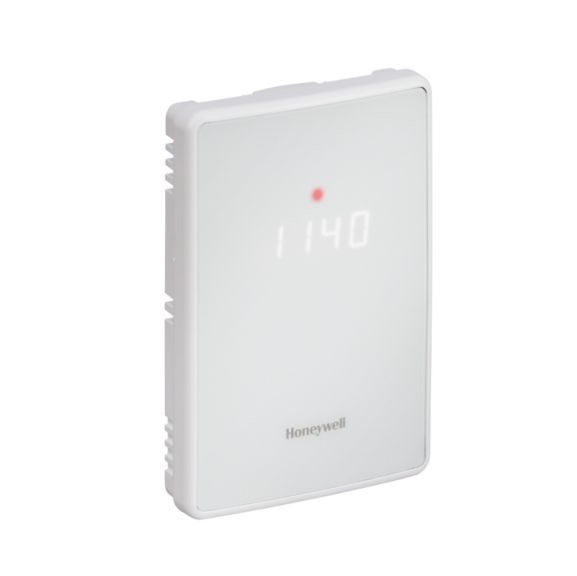

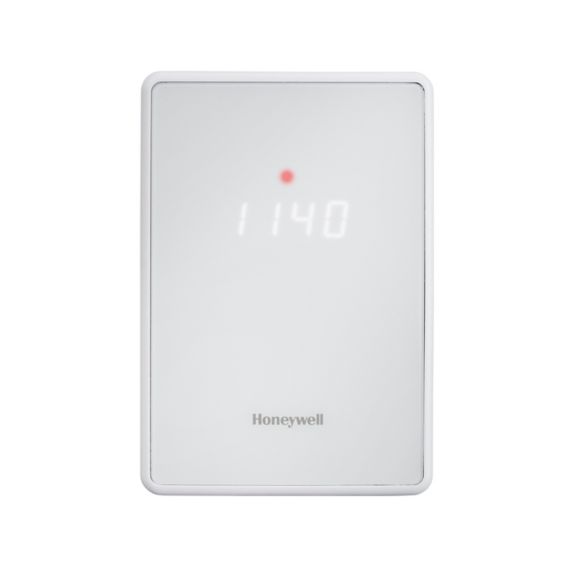

C7233 & C7263 Wall Mount CO2 Sensor

The C7233 & C7263 Series Sensors are a stand-alone carbon dioxide (CO2) sensors for use in determining ventilation necessity with HVAC controllers.

Overview

The C7233 & C7263 Series Sensors are a stand-alone carbon dioxide (CO2) sensors for use in determining ventilation necessity with HVAC controllers. The C7233 measures the CO2 concentration in the occupied space. The C7263 measures the CO2 concentration and temperature in the occupied space. The C7233 & C7263 are used in ventilation systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO2, and optional temperature sensing.

Features & Benefits:
  • Wall mount
  • Ultra compact size and elegant design with easy cleaning with smooth front membrane
  • Options with or without white LED displays - all variants have red LED notification activated when CO2 level exceeds preset threshold
  • Analog output range is selectable 0/2-10 Vdc, 4-20mA and provides accurate proportional linear signal through entire sensing range 0-2000ppm
  • Highly accurate and reliable non-dispersion infrared (NDIR) technology for CO2 sensing
  • Programmable SPST Relay (1A@50VAC/24VDC)
  • Optional temperature output (20K ohm NTC)
Certifications:
  • CA Title 24, Part 6
  • CEC Standard for Residential and Non-Residential Buildings-2016
  • CEC Standard - CO2
Sort
Reference Guides
Document Title
Document Type
File Size
Others
Document Title
Document Type
File Size
Brochure
Document Title
Document Type
File Size
Brochure
3.36 MB
Installation Instructions
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
C7233A1008
Wall Mount CO2 Sensor, display, 2-10VDC04-20mA
alt
C7233A1016
Wall Mount CO2 Sensor, no display, 2-10VDC04-20mA
alt
C7233A1024
Wall Mount CO2 Sensor, display, 2-10VDC04-20mA, no logo
alt
C7263A1008
Wall Mount CO220K ohm Temperature Sensor, display, 20-10VDC04-20mA
