INNCOM Dx47 Controller

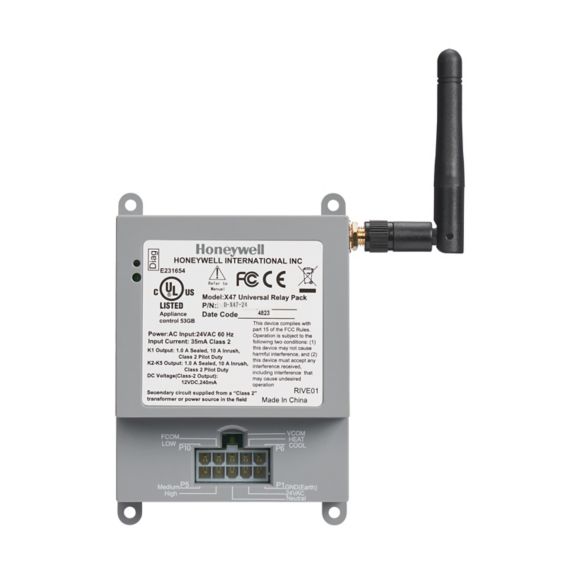

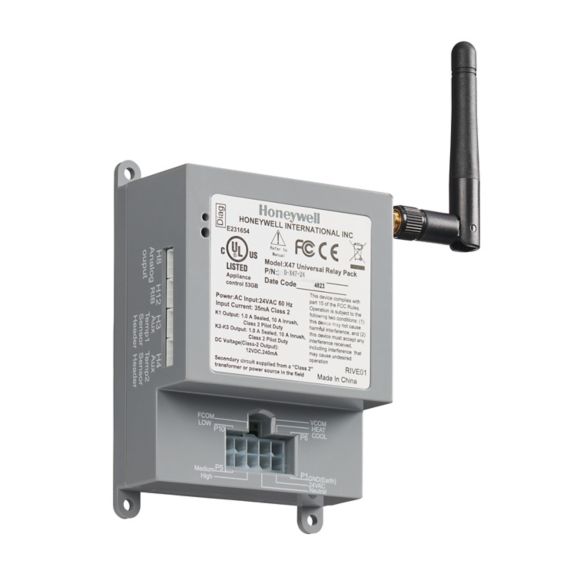

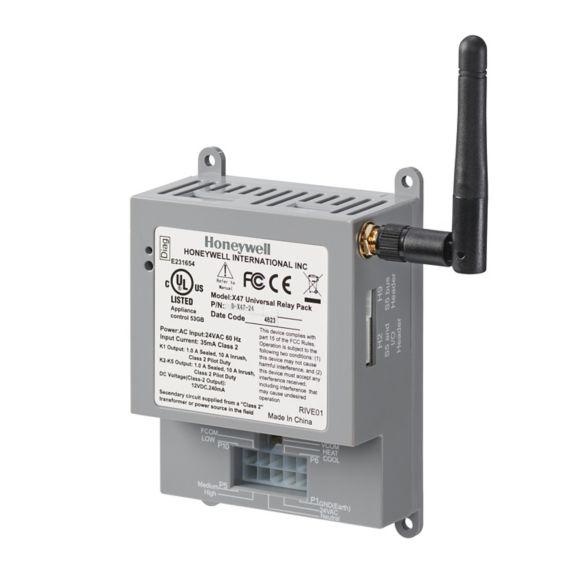

The D-X47 Universal Relay Pack (PN D-X47- 24) is an Inncom Integrated Room Automation System (IRAS) device designed for guestroom controls. The D-X47 provides five relay outputs used to switch a variety of loads, including fan coil units (FCU) and lightduty

general loads. The D-X47 can integrate with and receive data from multiple points throughout the IRAS using low-voltage wired communication (S5bus) or radio frequency (RF) communication (when connected to a PC502). The D-X47 is a 24 V power controller.

D-X47 FCU Controller: In combination with the INNCOM D1 Thermostat, the D-X47 FCU controller is a feature-rich, costsaving energy management tool. Communication using RF or Inn’s IR Eye5 Infrared Transceiver adds to its installation versatility.

• • Controls a full range of FCU systems, complex light-duty lighting circuits, and other guestroom applications from 24–277 VAC
• • Supports three communication modes: S5bus, ZigBee, and RF
• • Installs inside FCU/ HVAC enclosures
• • Connects to remote thermistor (04-1096, 04-1096.MOD 04-1095) for external temperature sensing (+/- 1%temperature accuracy at 25 °C)
• • Enclosed to protect sensitive circuitry
• • Complies with agencyapproved recommendations for worldwide usage
• • Supports Over the Air upgrade feature

• UL
• FCC
• IC
• CE MARK
• CCC
