Submeters

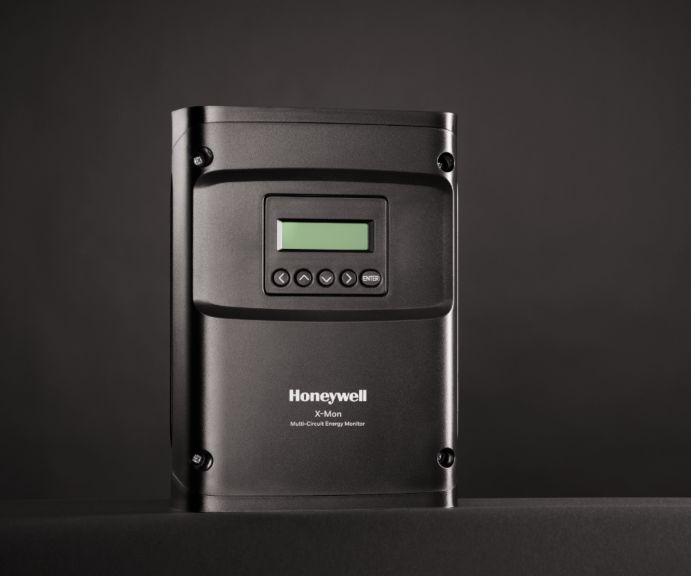

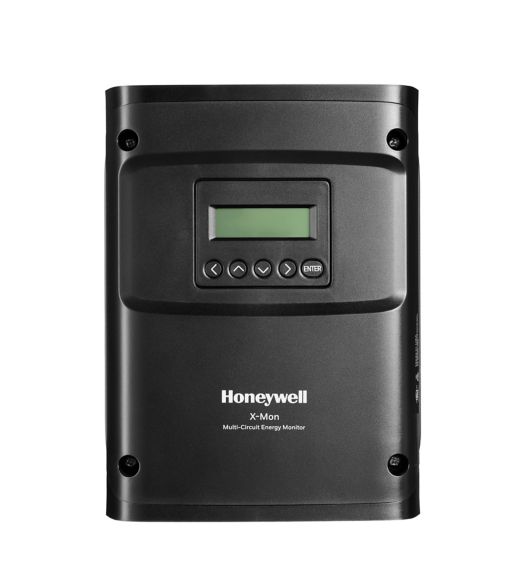

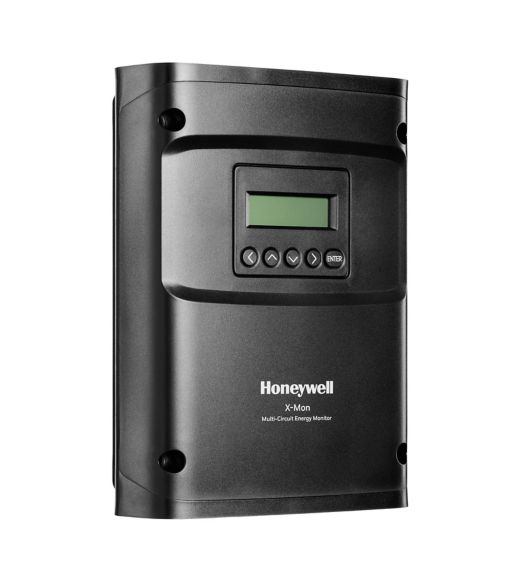

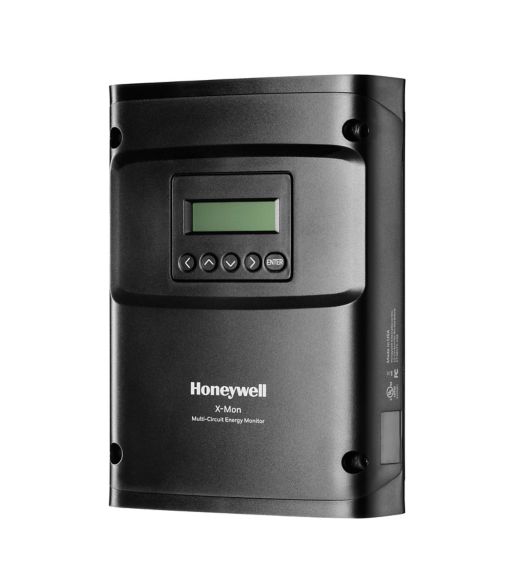

Honeywell X-Mon Branch Circuit Meter
X-Mon Branch Circuit Meters are versatile, multi-channel instrument. The modular design allows it to be configured for monitoring multiple electrical circuits or for current-only monitoring of branch circuits.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
X-Mon Branch Circuit Meters are versatile, multi-channel instrument. The modular design allows them to be configured for monitoring multiple electrical circuits or for current-only monitoring of branch circuits. It can be supplied with any of internally-shunted split-core or Recoil CTs. Monitor any combination of up to 16 three-phase or 48 single-phase electrical devices with a single X-Mon Branch Circuit Meter. With data updates every 1 second and ANSI C12.20-2010 Class 0.2 revenue grade accuracy (depending on CT), the X-Mon Branch Circuit Meter is well-suited for data centre monitoring, tenant sub metering, and for accountability metering in commercial, retail, and industrial facilities.
Features & Benefits:- Multi-circuit sub-meter monitors voltage, current, power, energy or any parameters
- Two independent voltage

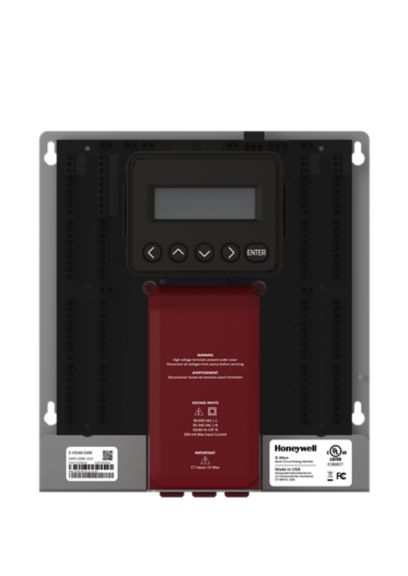

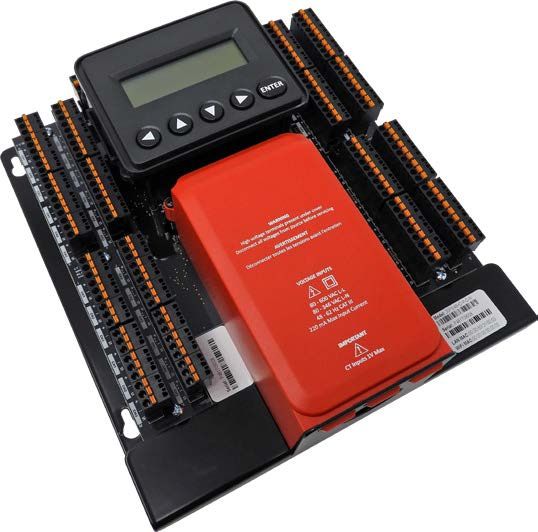

- Mounting plate included on circuit board only version
- Safest installation ever
- High-Voltage Cover offers additional level of protection
- Positive and negative Modbus registers/ BACnet objects
- CE
- UL
- CTEP
- NY PSC
