Network Gateways

Backtalk Contol Module

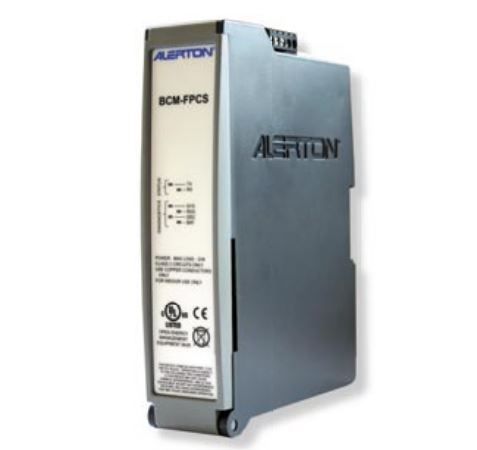

Alerton’s BCM-FPCS is the gateway between Siemens P1 network and a BACtalk system. The BCM-FPCS hosts automation features such as schedules, trendlogs, alarms, optimum start, demand limiting, and tenant activity .

Overview

Alerton’s BCM-FPCS is the gateway between Siemens P1 network and a BACtalk system allowing you to get the most from your current investment.. The BCM-FPCS hosts automation features such as schedules, trendlogs, alarms, optimum start, demand limiting, and tenant activity for up to 32 field controllers connected to its P1 LAN. P1 is a LAN standard using the EIA-485 signaling standard on twisted-pair cabling in a simple bus confi guration. DIN-rail mounting and a ribbon-cable connection to other BCMs make expansion easy. You can add a network or integration option in minutes, which gives you unprecedented flexibility to adapt quickly as your connectivity, integration, processing, and control requirements change.

Features & Benefits:
  • Economical
  • Interoperable
  • Intuitive
  • Scalable
  • Reliable
Certifications:
  • EMC Directive 89/336/EEC (European CE Mark)
  • FCC Part 15, Subpart J, Class A
Specifications

Others

  • Minimum Operating Humidity
    • 0 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature
    • 41 degree Fahrenheit
    • 5 degree Celsius
  • Switching Data Points
    • 160
  • Brand
    • Alerton
  • Gateway Type
    • BCM-FPCS
  • Mounting Type
    • DIN Rail inch
  • Module Type
    • BACtalk Operator Workstation Software
  • Communications Protocol
    • BACnet
  • Battery Type
    • Nickel Cadmium

Others

  • Minimum Operating Humidity
    • 0 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature
    • 41 degree Fahrenheit
    • 5 degree Celsius
  • Switching Data Points
    • 160
  • Brand
    • Alerton
  • Gateway Type
    • BCM-FPCS
  • Mounting Type
    • DIN Rail inch
  • Module Type
    • BACtalk Operator Workstation Software
  • Communications Protocol
    • BACnet
  • Battery Type
    • Nickel Cadmium
  • Minimum Operating Humidity : 0 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature : 41 degree Fahrenheit|5 degree Celsius
  • Switching Data Points : 160
  • Brand : Alerton
  • Gateway Type : BCM-FPCS
  • Mounting Type : DIN Rail inch
  • Module Type : BACtalk Operator Workstation Software
  • Communications Protocol : BACnet
  • Battery Type : Nickel Cadmium
Sort
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
BCM-FPCS
Control Module, 8MB Flash RAM, 32MB SDRAM, 7.2V, 700mA-h, 166x39x127mm, 0-55 C
SKU
Description
alt
BCM-FPCS
Control Module, 8MB Flash RAM, 32MB SDRAM, 7.2V, 700mA-h, 166x39x127mm, 0-55 C
