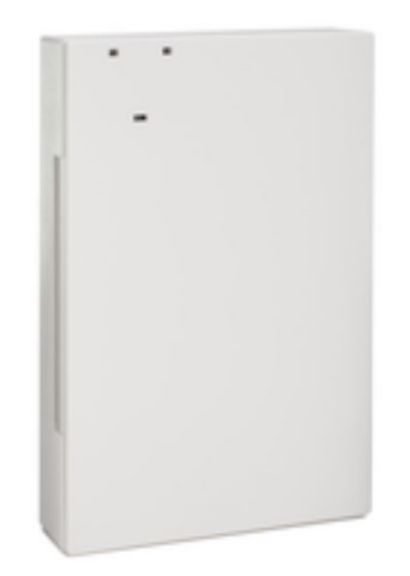

Honeywell Wired Zone Expander
Discontinued
Wired Zone Expansion Modules with 2 Relays serves as a convenient multipurpose module for VISTA Panel. They provides terminals for 8 additional hardwired sensors and two relay outputs for providing power to external hardwired electrical devices.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
Wired Zone Expander supported by end-of-line resistors (EOLR) or use Normally Closed (NC) wiring. The wiring option can be selected using a configurable Dip Switch on the module. The module comes included with the necessary 2K ohm resistors for EOLR zones. Unused zones do not require resistors. Please note that 2-wire smokes and carbon monoxide sensors should be mounted to the main panel board rather than the 4229 Module.
Features & Benefits:- Provides 8 end-of-line supervised zones and 2 on-board programmable form C relays
- Connection made to the control's console wires
- Supported on VISTA-20HW
