I/O Modules

LON® Compact I/O Module

LON® compact I/O modules are LonMark® compliant analog and digital input/output modules designed for decentralized, space-saving installation in control cabinets and distributor boxes.

LON® compact I/O modules are LonMark® compliant analog and digital input/output modules designed for decentralized, space-saving installation in control cabinets and distributor boxes. Due to their small size, the modules are perfectly suited for mounting in remote locations. The input modules scan signals and states of conventional sensors and contacts and send the acquired values via network variables to other LonMark modules. The output modules convert commands from the LON network into analog or digital control commands.

The modules are especially suited for decentralized mounting in combination with the EXCEL® 5000 system. Each module has its own LON interface for autonomous operation. Terminal connectors are available for time-saving module connections in end-to-end installation. Additional modules are available for connecting the LON network and the power supply, as well as for additional terminals.

Features & Benefits:
  • LonMark compliant
  • LON FTT10 interface
  • Compact design
  • Easy end-to-end installation with connectors
  • Service LED and operating LED
  • Position indication via LEDs
  • Status LEDs for digital inputs
  • Output modules with manual switches for local override
  • Infinitely variable overriding of analog outputs with manual feedback
  • Feedback of manual position
Certifications:
  • UL 916, Standard for Energy Management Equipment
  • European Community Mark (CE) Listed

Others

  • Maximum Operating Ambient Temperature
    • 158 degree Fahrenheit
    • 170 degree Celsius
  • Minimum Operating Ambient Temperature
    • -23 degree Fahrenheit
    • -5 degree Celsius
  • Control Software
    • Input/Output Module
  • Brand
    • Honeywell Multisite
  • Type
    • I/O Module
  • Communications Protocol
    • LonWorks Bus
  • For Use With
    • Compact I/O Family

Others

  • Maximum Operating Ambient Temperature
    • 158 degree Fahrenheit
    • 170 degree Celsius
  • Minimum Operating Ambient Temperature
    • -23 degree Fahrenheit
    • -5 degree Celsius
  • Control Software
    • Input/Output Module
  • Brand
    • Honeywell Multisite
  • Type
    • I/O Module
  • Communications Protocol
    • LonWorks Bus
  • For Use With
    • Compact I/O Family
  • Control Software : Input/Output Module
  • Brand : Honeywell Multisite
  • Type : I/O Module
  • Communications Protocol : LonWorks Bus
  • For Use With : Compact I/O Family
  • Minimum Operating Ambient Temperature : -23 degree Fahrenheit|-5 degree Celsius
  • Maximum Operating Ambient Temperature : 158 degree Fahrenheit|170 degree Celsius
Reference Guides
Name
Description
File Size
Date
Size
I-O Modules Quick Selection Guide
application/pdf 596.92 KB
4/7/2022
596.92 KB
Data Sheet
Name
Description
File Size
Date
Size
Product Data
application/pdf 6.74 MB
2/17/2022
6.74 MB
Installation Instructions
Name
Description
File Size
Date
Size
Installation Instructions
application/pdf 1.18 MB
2/17/2022
1.18 MB
Installation Instructions
application/pdf 1.52 MB
2/17/2022
1.52 MB
Installation Instructions
application/pdf 1.43 MB
2/17/2022
1.43 MB
Installation Instructions
application/pdf 1.21 MB
2/17/2022
1.21 MB
Installation Instructions
application/pdf 1.43 MB
8/19/2021
1.43 MB
Brochure
Name
Description
File Size
Date
Size
brochure
application/pdf 645.99 KB
2/17/2022
645.99 KB
Name
Description
File Size
Date
Size
I-O Modules Quick Selection Guide
596.92 KB
4/7/2022
596.92 KB
Product Data
6.74 MB
2/17/2022
6.74 MB
Installation Instructions
1.18 MB
2/17/2022
1.18 MB
Installation Instructions
1.52 MB
2/17/2022
1.52 MB
Installation Instructions
1.43 MB
2/17/2022
1.43 MB
brochure
645.99 KB
2/17/2022
645.99 KB
Installation Instructions
1.21 MB
2/17/2022
1.21 MB
Installation Instructions
1.43 MB
8/19/2021
1.43 MB
SKU
Description
alt

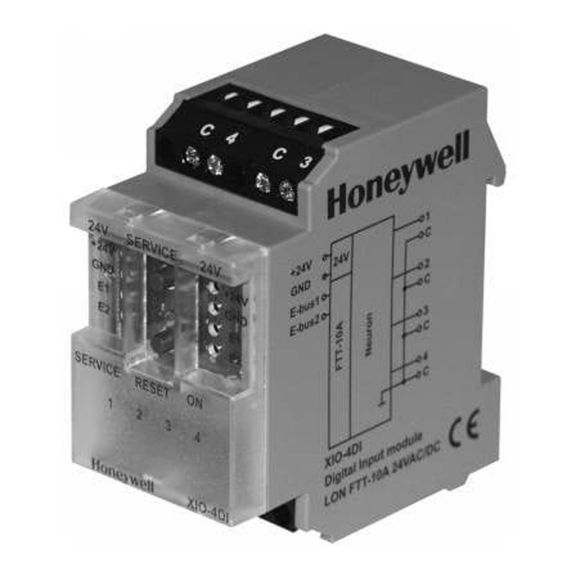

XIO-4DI/U
Digital Input Module, 4 Inputs, 24V AC/DC
alt
XIO-10DI/U
Digital Input Module, 10 Inputs, 24V AC/DC
alt
XIO-8AI/U
Analog Input Module, 8 Inputs, 24V AC/DC
alt
XIO-4DO/U
Digital Input Module, 4 Outputs, 24V AC/DC
alt
XIO-4AO/U
Analog Output Module, 4 Outputs, 24V AC/DC
