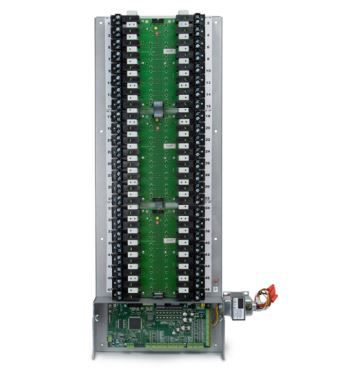

Retrofit Interior 48
Retrofit Interior (RI) replaces existing relay panel electronics and relays with a single back plate mounted assembly. Installation retains the original line voltage wire, conduit, and enclosure reducing labour as well as material cost.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Retrofit Interior (RI) replaces existing relay panel electronics and relays with a single back plate mounted assembly. Installation retains the original line voltage wire, conduit, and enclosure reducing labour as well as material cost.
RI may be scheduled from any BACnet BAS and is compatible with all low voltage switches, occupancy sensors, and light level sensors. Retrofit Interior 48 (RI48) may be specified with 24, 32, 40, or 48 Lighting Tough Relays (LTR) in addition to several special options.
Features & Benefits:- Retains line voltage wire, conduit, and enclosure
- Switching and Dimming (DLH / Presets) models available
- BACnet MS/TP communication to BAS network
- Sub network for Satellite and Capacitive Touch Stations (CTS)
- Install in less than 4 hours
- UL Listed, UL508A Open, Standard for Energy Management Equipment,
- US/Canada
- CEC Title 24
- Electronics meet or exceed IEC Level 3
Honeywell will provide product support until
Name
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
RIDS48-24-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 24 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-24-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 24 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-32-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 32 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-32-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 32 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-42-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 42 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-42-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 42 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-48-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 48 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-48-0-00-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 48 Relay Install, 120208240277V AC Transformer, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-48-0-X1-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 48 Relay Install, 120208240277V AC Transformer, UL925, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
RIDS48-48-0-X1-XX
Retrofit Interior, Dimming Standard, 48 Capacity, 48 Relay Install, 120208240277V AC Transformer, UL925, Top of Interior
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-rids48-24-0-00-xx-retrofit-interior-48-primaryimage
