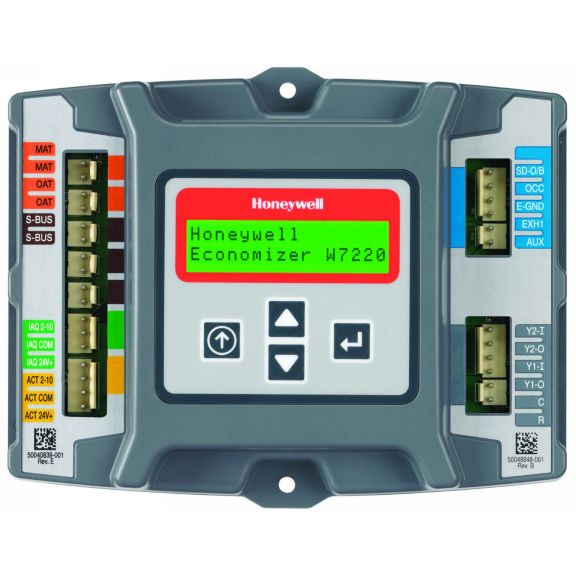

W7220 JADE™ Economizer Logic Module

W7220 JADE™ economizer logic modules provide the basic inputs and outputs to provide simple economizer control.

W7220 JADE™ economizer logic modules provide the basic inputs and outputs to provide simple economizer control. When used with the optional Sylk™ Bus sensors, these modules provide more advanced economizer functionality. They automatically detect sensors by polling to determine which sensors are present. If a sensor loses communications after it has been detected, the modules indicate a device fail error on the LCD.

Features & Benefits:
  • Designed for use with any Honeywell (2 to 10V DC) or Honeywell Sylk Bus communicating actuator
  • Includes terminals for a CO2 sensor, mixed air sensor, and an outdoor dry bulb sensor
  • Features a 2-line 16-character LCD display that provides status for normal operation, setup parameters, checkout tests, and alarms and error conditions
  • Rated voltage: 20 to 30V AC RMS; 50/60 Hz
Certifications:
  • C-Tick Approved

Others

  • Maximum Operating Humidity
    • 95 Non-condensing percentage relative humidity
  • Device Type
    • Economizer Module
  • Maximum Wire Gauge
    • 18 AWG
  • Minimum Wire Gauge
    • 22 AWG
  • Brand
    • Honeywell
  • Mounting Type
    • Duct
  • Network Connection
    • Yes

Others

  • Maximum Operating Humidity
    • 95 Non-condensing percentage relative humidity
  • Device Type
    • Economizer Module
  • Maximum Wire Gauge
    • 18 AWG
  • Minimum Wire Gauge
    • 22 AWG
  • Brand
    • Honeywell
  • Mounting Type
    • Duct
  • Network Connection
    • Yes
  • Device Type : Economizer Module
  • Maximum Wire Gauge : 18 AWG
  • Minimum Wire Gauge : 22 AWG
  • Brand : Honeywell
  • Mounting Type : Duct
  • Network Connection : Yes
  • Maximum Operating Humidity : 95 Non-condensing percentage relative humidity
