    Annunciators & Keypads

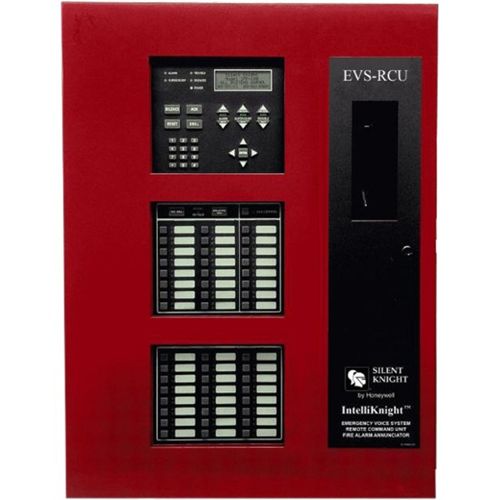

    EVS-RCU Supervised Remote Command Unit

    EVS-RCU supervised remote command units are a combination supervised remote microphone and annunciator that is compatible with the EVS-Series Emergency Voice System.

    Overview

    EVS-RCU supervised remote command units are a combination supervised remote microphone and annunciator that is compatible with the EVS-Series Emergency Voice System. The units meet UL requirements for a local operator's console (LOC).The included remote voice module provides an interface to the Emergency Voice System and is a supervised microphone for live communications. The annunciator is capable of performing complete operation of the fire alarm system, including silencing and resetting.

    Features & Benefits:
    • On-board supervised microphone
    • Programmable trigger inputs from an external source, such as a Monaco system, to either the RVM or 5880 (up to eight inputs available on the 5880 module)
    • After the main panel unit, up to four EVS-RCUs can be added to provide a total of five command units
    • Up to 32 mappable speaker circuits
    • All Call and Non-Active Call buttons to quickly select all active or all the non-active output groups
    • Six-wire connection to EVS system; 2-wires for the voice bus, and 4-wires for the SBUS connections
    • Can be surface or flush mounted
    Certifications:
    • UL 864, 2572
    • CSFM
    • Meets the requirements for NFPA 72 Local Protective Signally Systems & Emergency Communication Systems
    Specifications

    Others

    • Product Type
      • Remote Control Unit
    • Brand
      • Honeywell

    Others

    • Product Type
      • Remote Control Unit
    • Brand
      • Honeywell
    • Product Type : Remote Control Unit
    • Brand : Honeywell
    Others
    Name
    Description
    File Size
    Date
    Size
    5820XL-EVS Fire Alarm Control Unit.
    application/pdf 166.43 KB
    5/14/2023
    166.43 KB
    EVS-RCU Install Sheet
    application/pdf 162.48 KB
    3/15/2023
    162.48 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    EVS-RVM Manual
    application/pdf 104.92 KB
    5/8/2023
    104.92 KB
    EVS Installation Manual
    application/pdf 1.67 MB
    8/25/2022
    1.67 MB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    EVS-RCU Data Sheet
    application/pdf 286.72 KB
    5/14/2023
    286.72 KB
    Name
    Description
    File Size
    Date
    Size
    5820XL-EVS Fire Alarm Control Unit.
    application/pdf 166.43 KB
    5/14/2023
    166.43 KB
    EVS-RCU Install Sheet
    application/pdf 162.48 KB
    3/15/2023
    162.48 KB
    EVS-RVM Manual
    application/pdf 104.92 KB
    5/8/2023
    104.92 KB
    EVS-RCU Data Sheet
    application/pdf 286.72 KB
    5/14/2023
    286.72 KB
    EVS Installation Manual
    application/pdf 1.67 MB
    8/25/2022
    1.67 MB
    Name
    Description
    File Size
    Date
    Size
    5820XL-EVS Fire Alarm Control Unit.
    166.43 KB
    5/14/2023
    EVS-RCU Install Sheet
    162.48 KB
    3/15/2023
    EVS-RVM Manual
    104.92 KB
    5/8/2023
    EVS Installation Manual
    1.67 MB
    8/25/2022
    EVS-RCU Data Sheet
    286.72 KB
    5/14/2023
    Product Number
    Part Number
    Description
    Add to list
    EVS-RCU
    Supervised Remote Command Unit
