Emergency Voice / Alarm Communications System

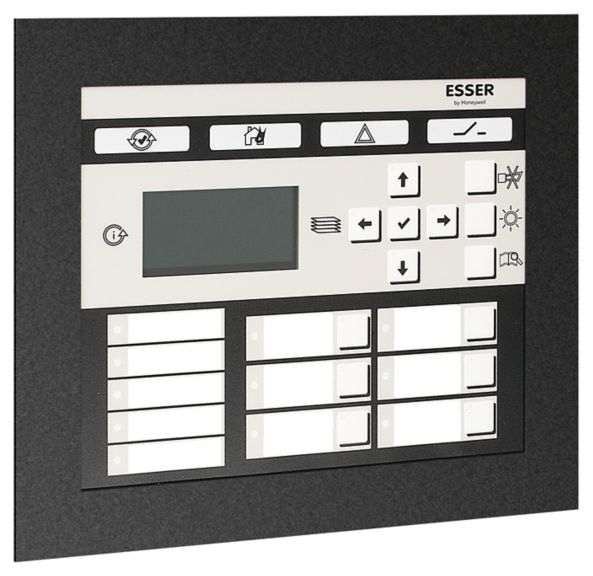

GMT 4000 Repeater Panel

The repeater panel GMT 4000 is a parallel display and control unit for the FACP IQ8Control and FACP FlexES Control

Individually programmable control buttons and LED ndicators guarantee remote display and operation adapted to the property-protection objective. Capacitive buttons allow for ergonomic operation and querying of system states. The plain text display of the system status via a graphicscapable, six-line display, with 20 characters per line.

Features & Benefits:
  • Connection to RS485 dual interface
  • Capacitive buttons
  • Optional for non-redundant or redundant connections
  • Graphic display with 6 lines of 20 characters each
  • Text labels are transferred from the FACP
  • 4 buttons for operating the display (scroll up/down, slide right/left)
  • 3 buttons for operating the buzzer: off, test, and log
  • 1 button to confirm selection for special functions
  • 4 Common LED indicators (operation, alarm, fault, disablement)
  • Connection to RS485 dual interface
  • 6 programmable buttons for macro operation that control a configurable series of operating procedures, e.g. Detector Zone-1 to Detector Zone-10
  • 5 programmable individual indications
  • Buzzer
  • History function
  • Direct connection to FACP via RS485 interface - max. 1 device
  • Connection via ADP4000 - max. 16 devices
