    Specialty Modules

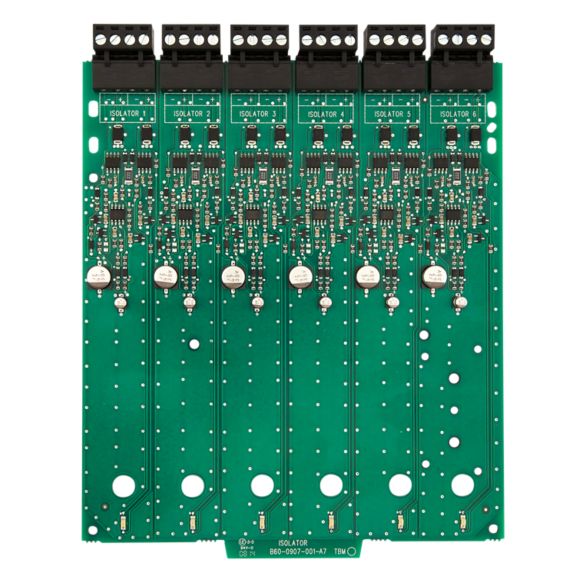

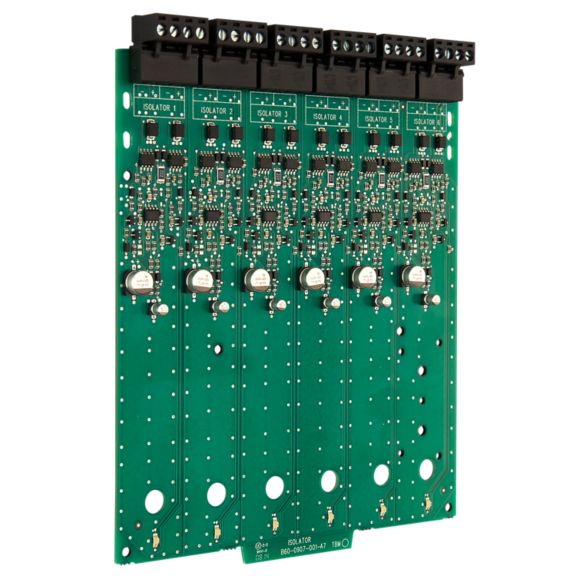

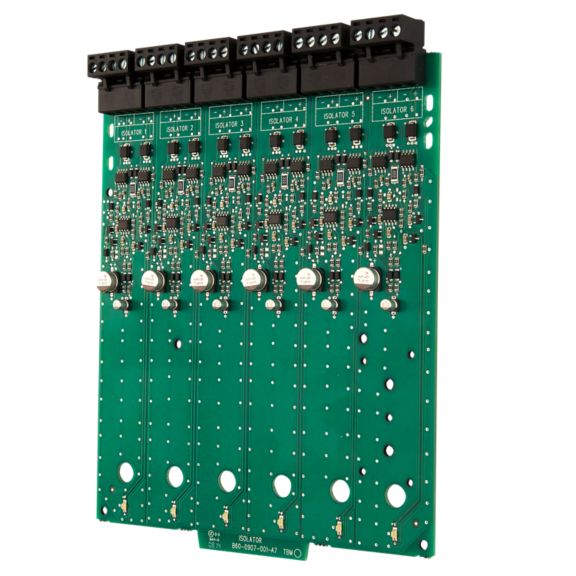

    ISO-6 Six Fault Isolator Module

    ISO-6 six fault isolator modules provide six equivalent circuits that will allow a portion of the communications loop to continue operating when a short circuit occurs on that loop.

    Overview

    ISO-6 six fault isolator modules have an amber LED indicator that will blink in the normal state for each of the six inputs and will latch on during a short circuit condition. The modules will automatically restore the communications loop to normal condition when the short circuit is removed. ISO-6 six fault isolator modulesare an automatic switch that open when the line voltage drops below four volts. Isolator modules should be spaced between groups of sensors or modules in a loop to protect the rest of the loop. If a short occurs between any two isolators, then both isolators immediately switch to an open circuit state and isolate the devices between them. The remaining units on the loop continue to fully operate.

    Features & Benefits:
    • Removable 12 to 18 AWG plug-in terminal blocks
    • Individual LED status indicators
    • Six individual, Class B isolator circuits
    • Mount up to two modules in IDP-ACB enclosure (optional)
    • Mounting hardware included &
    Certifications:
    • UL, ULC Listed
    • FM Approved
    • CSFM
    Others
    Name
    Description
    File Size
    Date
    Size
    Intelligent Six Isolator Module Engineering Spec
    application/pdf 103.6 KB
    5/14/2023
    103.6 KB
    Fire Alarm Isolator Module Honeywell BIM Object
    application/x-tika-msoffice 420 KB
    420 KB
    ISO-6 BIM File
    application/x-tika-msoffice 596 KB
    596 KB
    System Sensor Loop Control Card, UL-Listed Document
    application/pdf 519.8 KB
    519.8 KB
    ISO-6 Six Fault Isolator Module
    application/pdf 805.94 KB
    5/8/2023
    805.94 KB
    500 Series Multiple Input and Output Modules Datasheet
    application/pdf 392.78 KB
    5/14/2023
    392.78 KB
    ISO-6 SLC Isolation Multi-Module Data Sheet
    application/pdf 406.06 KB
    5/14/2023
    406.06 KB
    ISO-6 UL Listing
    application/pdf 175.39 KB
    5/14/2023
    175.39 KB
    350997_C_ISO-6_Datasheet
    application/pdf 180.78 KB
    5/14/2023
    180.78 KB
    500 Series Multiple Input - Output Modules Datasheet
    application/pdf 372.07 KB
    8/10/2022
    372.07 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    ISO-6 Six Fault Isolator Module Installation Document
    application/pdf 373.72 KB
    5/8/2023
    373.72 KB
    ISO-6 Six Fault Isolator Module
    application/pdf 373.72 KB
    5/8/2023
    373.72 KB
    ISO-6A Six Fault Isolator Module Installation Guide
    application/pdf 355.9 KB
    5/8/2023
    355.9 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    ISO-X(A) Data Sheet
    application/pdf 106.08 KB
    3/22/2023
    106.08 KB
    ISO-6(A) Data Sheet
    application/pdf 92.98 KB
    5/14/2023
    92.98 KB
    ISO-6 Fault Isolator Modules (500 Series) Data Sheet
    application/pdf 193.03 KB
    5/14/2023
    193.03 KB
    500 SeriesMultiple Input and Output Modules Datasheet
    application/pdf 156.25 KB
    5/14/2023
    156.25 KB
    Catalog
    Name
    Description
    File Size
    Date
    Size
    Engineering and Applications Catalog
    application/pdf 131.74 KB
    5/10/2023
    131.74 KB
    Name
    Description
    File Size
    Date
    Size
    Intelligent Six Isolator Module Engineering Spec
    application/pdf 103.6 KB
    5/14/2023
    103.6 KB
    Fire Alarm Isolator Module Honeywell BIM Object
    application/x-tika-msoffice 420 KB
    420 KB
    ISO-6 BIM File
    application/x-tika-msoffice 596 KB
    596 KB
    System Sensor Loop Control Card, UL-Listed Document
    application/pdf 519.8 KB
    519.8 KB
    ISO-X(A) Data Sheet
    application/pdf 106.08 KB
    3/22/2023
    106.08 KB
    ISO-6(A) Data Sheet
    application/pdf 92.98 KB
    5/14/2023
    92.98 KB
    ISO-6 Six Fault Isolator Module
    application/pdf 805.94 KB
    5/8/2023
    805.94 KB
    500 Series Multiple Input and Output Modules Datasheet
    application/pdf 392.78 KB
    5/14/2023
    392.78 KB
    Engineering and Applications Catalog
    application/pdf 131.74 KB
    5/10/2023
    131.74 KB
    ISO-6 Fault Isolator Modules (500 Series) Data Sheet
    application/pdf 193.03 KB
    5/14/2023
    193.03 KB
    ISO-6 SLC Isolation Multi-Module Data Sheet
    application/pdf 406.06 KB
    5/14/2023
    406.06 KB
    ISO-6 UL Listing
    application/pdf 175.39 KB
    5/14/2023
    175.39 KB
    350997_C_ISO-6_Datasheet
    application/pdf 180.78 KB
    5/14/2023
    180.78 KB
    ISO-6 Six Fault Isolator Module Installation Document
    application/pdf 373.72 KB
    5/8/2023
    373.72 KB
    ISO-6 Six Fault Isolator Module
    application/pdf 373.72 KB
    5/8/2023
    373.72 KB
    500 Series Multiple Input - Output Modules Datasheet
    application/pdf 372.07 KB
    8/10/2022
    372.07 KB
    ISO-6A Six Fault Isolator Module Installation Guide
    application/pdf 355.9 KB
    5/8/2023
    355.9 KB
    500 SeriesMultiple Input and Output Modules Datasheet
    application/pdf 156.25 KB
    5/14/2023
    156.25 KB
    Name
    Description
    File Size
    Date
    Size
    Intelligent Six Isolator Module Engineering Spec
    103.6 KB
    5/14/2023
    Fire Alarm Isolator Module Honeywell BIM Object
    420 KB
    ISO-6 BIM File
    596 KB
    System Sensor Loop Control Card, UL-Listed Document
    519.8 KB
    ISO-6 Six Fault Isolator Module
    805.94 KB
    5/8/2023
    500 Series Multiple Input and Output Modules Datasheet
    392.78 KB
    5/14/2023
    ISO-6 SLC Isolation Multi-Module Data Sheet
    406.06 KB
    5/14/2023
    ISO-6 UL Listing
    175.39 KB
    5/14/2023
    350997_C_ISO-6_Datasheet
    180.78 KB
    5/14/2023
    500 Series Multiple Input - Output Modules Datasheet
    372.07 KB
    8/10/2022
    ISO-6 Six Fault Isolator Module Installation Document
    373.72 KB
    5/8/2023
    ISO-6 Six Fault Isolator Module
    373.72 KB
    5/8/2023
    ISO-6A Six Fault Isolator Module Installation Guide
    355.9 KB
    5/8/2023
    ISO-X(A) Data Sheet
    106.08 KB
    3/22/2023
    ISO-6(A) Data Sheet
    92.98 KB
    5/14/2023
    ISO-6 Fault Isolator Modules (500 Series) Data Sheet
    193.03 KB
    5/14/2023
    500 SeriesMultiple Input and Output Modules Datasheet
    156.25 KB
    5/14/2023
    Engineering and Applications Catalog
    131.74 KB
    5/10/2023
    Product Number
    Part Number
    Description
    Add to list
    ISO-6
    Addressable 6 Fault Isolator Module, 15 to 32V DC, 0 to 49C
    ISO-6A
    Addressable 6 Fault Isolator Module, 15 to 32VDC, 0 to 49C, ULC Listed
