Contact Sensors

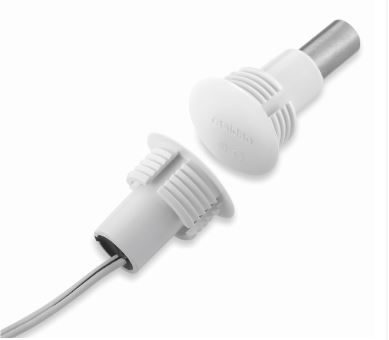

Door Magnetic Contact with Terminal

Steel Door Magnetic Contact with Terminals by Honeywell are Series contacts provide you with a whole new level of convenience and flexibility.

Honeywell’s Staggered T Series contacts provide you with a whole new level of convenience and flexibility. By staggering the terminals, we discovered a way to fit larger screw terminals without altering the industry-standard 3/8" diameter case size–and without having to use any special screwdrivers. Easier wiring and faster installations. The innovative design eliminates splicing and soldering, and no special screwdrivers are required. It’s the industry standard-sized contact from the company with the highest standards in the industry

Others

  • Contact Rating
    • 300 mA @ 30 voltage direct current
  • Maximum Gap Distance
    • 16 millimetre
    • 5/8 inch
  • Contact Configuration
    • Form A
  • Switch Configuration
    • SPST
  • Switch Type
    • Reed

Others

  • Contact Rating
    • 300 mA @ 30 voltage direct current
  • Maximum Gap Distance
    • 16 millimetre
    • 5/8 inch
  • Contact Configuration
    • Form A
  • Switch Configuration
    • SPST
  • Switch Type
    • Reed
  • Contact Configuration : Form A
  • Switch Configuration : SPST
  • Switch Type : Reed
  • Contact Rating : 300 mA @ 30 voltage direct current
  • Maximum Gap Distance : 16 millimetre|5/8 inch
Others
Document Title
File Size
Date Added
0.46 MB
2/14/2022
Slide Presentations
Document Title
File Size
Date Added
1.1 MB
2/3/2022
Data Sheet
Document Title
File Size
Date Added
Catalog
Document Title
File Size
Date Added
Document Title
File Size
Date Added
SKU
Description
alt
947-75WH
Door Magnetic Contact with Terminal, 19mm Diameter, Switch 19 Dx33mm L, White
