Motion Detectors

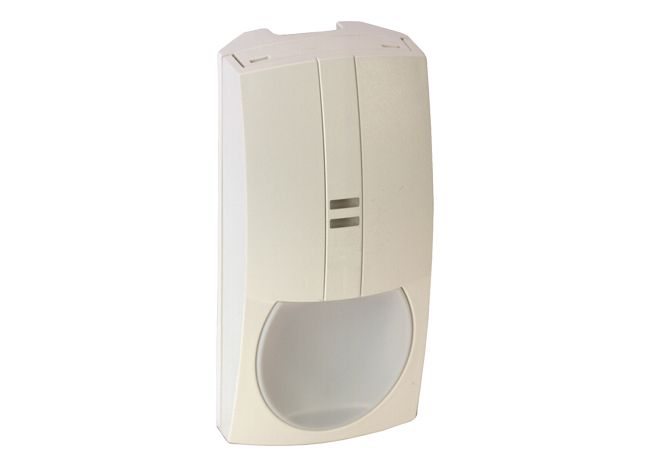

Viewguard PIR Motion detector

The Viewguard PIR detectors are motion detectors that work by the passive infrared principle. For continuous detection, the detector are equipped with a high-quality mirror optics. The standard models are delivered with a mirror for surface optics.

The Viewguard PIR detectors are motion detectors that work by the passive infrared principle.

For continuous detection, the detector are equipped with a high-quality mirror optics. The standard models are delivered with a mirror for surface optics. Upon request the detectors can be upgraded on-site to route or curtain optics by integrating separately available accessories.

The detectors are suitable for intrusion detection control panels equipped with BUS-2 or BUS-1 technology or conventional connection technology and are available with or without anti-mask (AM) monitoring.

Features & Benefits:
  • Anti-Mask function
  • LED indication
  • FAI-logic
  • Walk test function
Certifications:
  • VdS Class B
  • EN 50131-1 and EN 50131-2-2, grade 2
  • SES-EMA-RL-T2:2010-08

Others

  • Overall Width
    • 64 Millimeter-PRD
  • Maximum Input Voltage
    • 15
  • Overall Depth
    • 48 Millimeter-PRD
  • Input Voltage
    • 12
  • Input Current
    • 1.6 milliampere
  • Minimum Storage Temperature
    • -25 Degrees Celsius
  • Overall Height
    • 130 Millimeter-PRD
  • Maximum Storage Temperature
    • 70 coulomb
  • Minimum Input Voltage
    • 8
  • Anti-Masking
    • 30
  • Includes
    • High-quality mirror optics
  • Regulatory Approvals
    • VdS Class B; EN 50131-1 and EN 50131-2-2, grade 2; SES-EMA-RL-T2:2010-08

Others

  • Overall Width
    • 64 Millimeter-PRD
  • Maximum Input Voltage
    • 15
  • Overall Depth
    • 48 Millimeter-PRD
  • Input Voltage
    • 12
  • Input Current
    • 1.6 milliampere
  • Minimum Storage Temperature
    • -25 Degrees Celsius
  • Overall Height
    • 130 Millimeter-PRD
  • Maximum Storage Temperature
    • 70 coulomb
  • Minimum Input Voltage
    • 8
  • Anti-Masking
    • 30
  • Includes
    • High-quality mirror optics
  • Regulatory Approvals
    • VdS Class B; EN 50131-1 and EN 50131-2-2, grade 2; SES-EMA-RL-T2:2010-08
  • Anti-Masking : 30
  • Includes : High-quality mirror optics
  • Regulatory Approvals : VdS Class B; EN 50131-1 and EN 50131-2-2, grade 2; SES-EMA-RL-T2:2010-08
  • Overall Width : 64 Millimeter-PRD
  • Maximum Input Voltage : 15
  • Overall Depth : 48 Millimeter-PRD
  • Input Voltage : 12
  • Input Current : 1.6 milliampere
  • Minimum Storage Temperature : -25 Degrees Celsius
  • Overall Height : 130 Millimeter-PRD
  • Maximum Storage Temperature : 70 coulomb
  • Minimum Input Voltage : 8
Sort
Others
Document Title
File Size
Date Added
Asset Language
Content Type
Brochure
Document Title
File Size
Date Added
Asset Language
Content Type
3.28 MB
2/17/2022
1.61 MB
2/17/2022
Document Title
File Size
Date Added
Asset Language
Content Type
3.28 MB
2/17/2022
6.14 MB
2/14/2022
1.61 MB
2/17/2022
SKU
Description
alt
033332.21
Viewguard PIR BUS-2/BUS-1
