Smoke Detectors

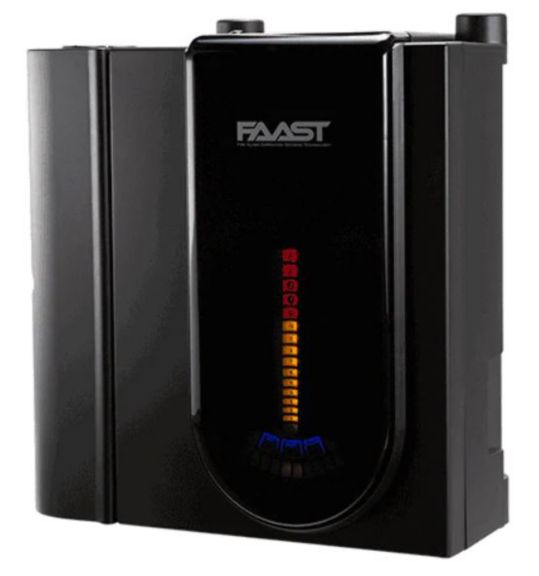

ASD-TP series Smoke Detectors

ASD-TP is a series of Smoke detector modules used for smoke detection in difficult enviroments. This Series gives a range of modules that are compatible with ALL-SPEC and FREZZER Air sampling devices (ASD).

Honeywell ASD-TP series is a range of smoke detectors that actively take air samples from the monitored area and analyse them for the presence of smoke particles. The low pressure needed for air sampling is produced by a fan and airflow sensor technology ensures functionality by constantly monitoring the pipe system for breakages and obstructions.

Thanks to their outstanding reliability, sensitivity and false alarm immunity, Honeywell air sampling smoke detection systems have been the tried and tested system of choice in a wide variety of applications. Especially in areas with particular detection requirements and difficult environmental conditions, these systems, approved under EN 54-20, have shown impressive technological leadership. Honeywell has demonstrated this through a comprehensive range of project design options for all the new standard classes and set a whole new standard within the industry.

Features & Benefits:
  • Provides good False alarm Immunity
  • Is suitable to work under difficult conditions
  • Top notch Sensitivity is provided by the module
Certifications:
  • EN 54-20 approved
  • CE Certified
  • LPCB Certified
  • VdS Certified

Others

  • Minimum Storage Temperature
    • -30 degree Celsius
  • Maximum Operating Voltage
    • 30 voltage direct current
  • Maximum Storage Temperature
    • 60 degree Celsius
  • Maximum Standby Current
    • 200 milliampere
  • Maximum Operating Humidity
    • 95 Percentage
  • Alarm Contact Ratings
    • 230 mA @ 24 voltage direct current
  • Alarm Current
    • 230 milliampere
  • Minimum Operating Humidity
    • 10 Percentage
  • Maximum Alarm Current
    • 230 milliampere
  • Detection Area
    • Sampled Points
  • Conventional or Addressable
    • Addressable
  • Brand
    • Morley-IAS
  • Detector Type
    • Aspirating
  • Sensitivity
    • 0.5Percentage

Others

  • Minimum Storage Temperature
    • -30 degree Celsius
  • Maximum Operating Voltage
    • 30 voltage direct current
  • Maximum Storage Temperature
    • 60 degree Celsius
  • Maximum Standby Current
    • 200 milliampere
  • Maximum Operating Humidity
    • 95 Percentage
  • Alarm Contact Ratings
    • 230 mA @ 24 voltage direct current
  • Alarm Current
    • 230 milliampere
  • Minimum Operating Humidity
    • 10 Percentage
  • Maximum Alarm Current
    • 230 milliampere
  • Detection Area
    • Sampled Points
  • Conventional or Addressable
    • Addressable
  • Brand
    • Morley-IAS
  • Detector Type
    • Aspirating
  • Sensitivity
    • 0.5Percentage
  • Detection Area : Sampled Points
  • Conventional or Addressable : Addressable
  • Brand : Morley-IAS
  • Detector Type : Aspirating
  • Sensitivity : 0.5Percentage
  • Minimum Storage Temperature : -30 degree Celsius
  • Maximum Operating Voltage : 30 voltage direct current
  • Maximum Storage Temperature : 60 degree Celsius
  • Maximum Standby Current : 200 milliampere
  • Maximum Operating Humidity : 95 Percentage
  • Alarm Contact Ratings : 230 mA @ 24 voltage direct current
  • Alarm Current : 230 milliampere
  • Minimum Operating Humidity : 10 Percentage
  • Maximum Alarm Current : 230 milliampere
