Smoke Detectors

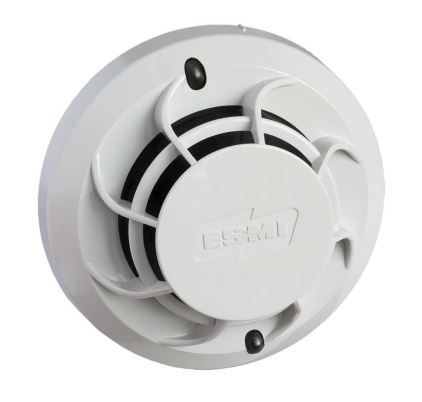

Optical Smoke Photo Thermal Detector

Optical Smoke Detectors are used for thermal assistance to the core photoelectric smoke detector to give enhanced false alarm immunity and faster response to a wide range of incipient fires.

Overview

Optical Smoke Detectors are used for thermal assistance to the core photoelectric smoke detector to give enhanced false alarm immunity and faster response to a wide range of incipient fires. The plug-in unit combines two separate sensing elements that are managed by embedded software to act as a single unit. The thermal detection function combines thermistor technology with a software corrected linear temperature response. In areas where the normal daytime activities may potentially create unwanted alarms, the detector can be programmed to operate in a “heat only” mode, automatically reverting to full photo-thermal operation during unoccupied periods.

Features & Benefits:
  • New mechanical platform with revolutionary chamber
  • Includes Schneider Electric protocol
  • Available with or without single pole short circuit isolation with status control through the Schneider Electric protocol
  • Tri colour LED offering red, green and amber colours
  • Rotary decade address switches
  • Pure white colour to compliment modern buildings
  • 100% mechanical and electrical backwards compatibility
  • New Base design to compliment the detector
Specifications

Others

  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Input Voltage
    • 15 voltage direct current
  • Brand
    • System Sensor
  • Detection Sensor Type
    • Photoelectric inch
    • Thermal inch
  • Detection Area
    • Linear
  • Detector Type
    • Fixed Temperature
    • Rate of Rise
  • Tests For
    • Heat
    • Smoke

Others

  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Input Voltage
    • 15 voltage direct current
  • Brand
    • System Sensor
  • Detection Sensor Type
    • Photoelectric inch
    • Thermal inch
  • Detection Area
    • Linear
  • Detector Type
    • Fixed Temperature
    • Rate of Rise
  • Tests For
    • Heat
    • Smoke
  • Minimum Operating Ambient Temperature : -30 degree Celsius
  • Maximum Operating Humidity : 93 Percentage
  • Minimum Input Voltage : 15 voltage direct current
  • Brand : System Sensor
  • Detection Sensor Type : Photoelectric inch|Thermal inch
  • Detection Area : Linear
  • Detector Type : Fixed Temperature|Rate of Rise
  • Tests For : Heat|Smoke
Sort
Document Title
Document Type
File Size
Product Number
Part Number
Description
Add to list
ESMI22051TE
Optical Smoke Detector: 102mm Length: 61mm Width
ESMI22051TE-IV
PhTh Detector NO ISO Ivory Esmi
ESMI22051TE-R
PhTh Detector NO Isolator Esmi
SKU
Description
alt
ESMI22051TE
Optical Smoke Detector: 102mm Length: 61mm Width
alt
ESMI22051TE-IV
PhTh Detector NO ISO Ivory Esmi
alt
ESMI22051TE-R
PhTh Detector NO Isolator Esmi
