    Emergency Voice / Alarm Communications System

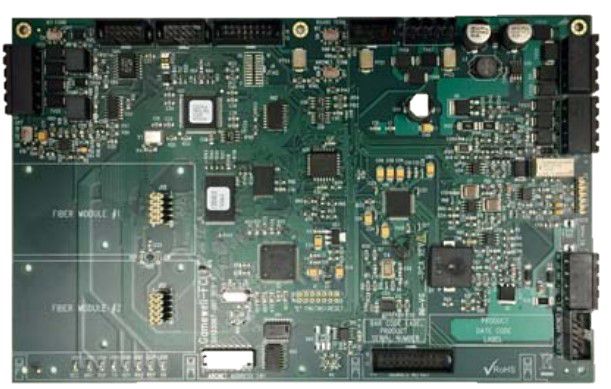

    Digital Audio Voice Transponder (INI-VGX)

    The INI-VGX Digital Audio Transponder Voice Gateway is a component of the E3 Broadband Audio Evacuation System.

    Overview

    The INI-VGX Digital Audio Transponder Voice Gateway is a component of the E3 Broadband Audio Evacuation System and an optional component of the E3 Series Expandable Emergency Evacuation System. Digital Signal Processing (DSP) technology, this feature allows the E3 Series Broadband System to produce superior clarity for intelligible LIVE voice paging. The background noise is automatically filtered during voice paging and fire fighter communications which increases the audibility and eliminates the need for Push-to-Talk devices.

    It is a multi-function module that incorporates the Software-programmable multi-channel digital audio applications, One Class B, Style 4 Signaling Line Circuit (SLC) supporting up to 32 addressable speaker circuits and 16 addressable phone circuits, Supports up to 150 watts of audio power with backup amplifier support, Offers a sixteen message capacity with up to 3 minute total duration per INI-VGX, Network interface using twisted, unshielded wire or fiber-optic cable and Local fire fighter phone riser.

    Features & Benefits:
    • Uses advanced Digital Signal Processor (DSP) technology that provides efficient audio compression and filtering
    • Modules connect to a voice page microphone and fire fighter’s handset
    • Fiber-optic connectivity for multi-mode (FML-E3) and single mode (FSL-E3)
    • NO loss of function during single line fault conditions due Distributed Architecture, including Style 7 wiring configuration
    • Controls all communication signals and control-by-event sequences over twisted, unshielded pair of wires or fiber-optic cable.
    Certifications:
    • 9020-0648K 02/19
    • UL Standards: UL 864 9th Edition UL 2572 for Mass Notification
    • ISO 9001 Certification
    • Listed under UL® Standard 864, 9th Edition
    • Listed under UL Standard UL2572 for Mass Notification
    Others
    Name
    Description
    File Size
    Date
    Size
    INI-VGX Module CAD Drawing
    image/vnd.dwg 309.58 KB
    4/28/2023
    309.58 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    INX Network Audio Transponder Data Sheet
    application/pdf 508.71 KB
    5/14/2023
    508.71 KB
    Intelligent Network Interface Voice Gateway Data Sheet
    application/pdf 87.48 KB
    5/14/2023
    87.48 KB
    Catalog
    Name
    Description
    File Size
    Date
    Size
    Engineering and Applications Catalog
    application/pdf 131.74 KB
    5/10/2023
    131.74 KB
    Name
    Description
    File Size
    Date
    Size
    INX Network Audio Transponder Data Sheet
    application/pdf 508.71 KB
    5/14/2023
    508.71 KB
    Engineering and Applications Catalog
    application/pdf 131.74 KB
    5/10/2023
    131.74 KB
    INI-VGX Module CAD Drawing
    image/vnd.dwg 309.58 KB
    4/28/2023
    309.58 KB
    Intelligent Network Interface Voice Gateway Data Sheet
    application/pdf 87.48 KB
    5/14/2023
    87.48 KB
    Name
    Description
    File Size
    Date
    Size
    INI-VGX Module CAD Drawing
    309.58 KB
    4/28/2023
    INX Network Audio Transponder Data Sheet
    508.71 KB
    5/14/2023
    Intelligent Network Interface Voice Gateway Data Sheet
    87.48 KB
    5/14/2023
    Engineering and Applications Catalog
    131.74 KB
    5/10/2023
    Product Number
    Part Number
    Description
    Add to list
    1100-1324
    Digital Audio Voice Transponder (INI-VGX) ,24V DC ,0.150 amp, 32 -120° F,Unshielded twisted-pair only.
    INI-VGX
    ASSY:FNL:INI-VGX
