Specialty Modules

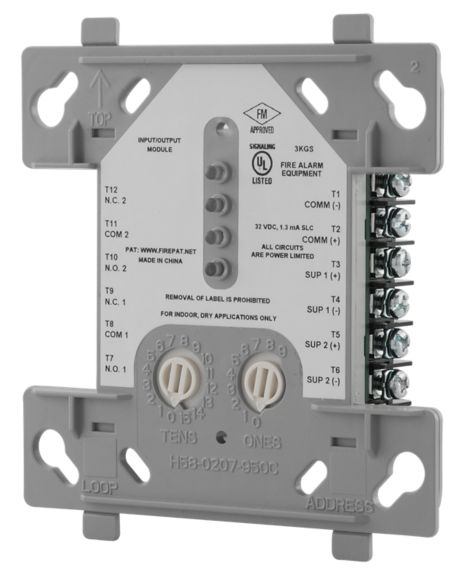

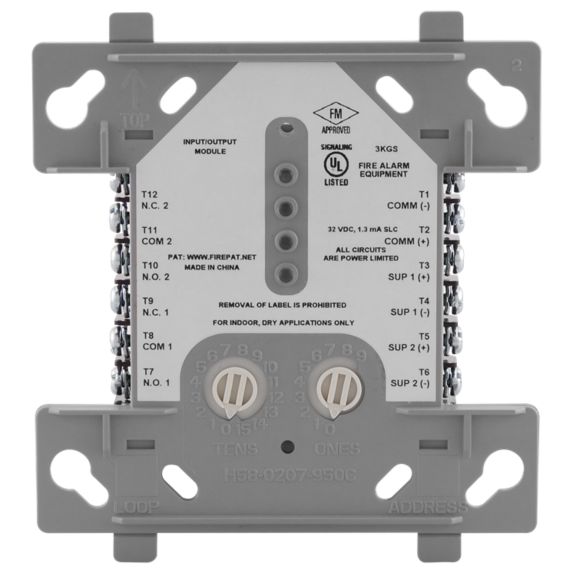

Two Relay Output Dual Monitor Module
Two relay output dual monitor modules are intended for use with intelligent, 2-wire systems, where the individual address of each module is selected using the built-in rotary decade switches.
Overview
Two relay output dual monitor modules are intended for use with intelligent, 2-wire systems, where the individual address of each module is selected using the built-in rotary decade switches. They are capable of replacing two individual relay control modules and two Class B monitor modules. Each of the relay outputs are intended for use with Form C switching applications which do not require wiring supervision for the load circuit. Each monitor input can be used to interface between a fire alarm control panel and one or more devices.
Features & Benefits:- Monitor two circuits, with unique addresses, simultaneously
- Two Form C relay contacts with each having a unique address
- Fully supervised support for Class B input wiring
- Relay programming is completely flexible – can be mapped to zone conditions
- Individual LED’s for each monitored input and relay output
- Attractive ivory cover plate
- Rotary address switches for fast installation
- SEMS screws for easy wiring
- UL Listed
Specifications
Others
- Brand
- Silent Knight
- Mounting Type
- Wall-Mount inch
Others
- Brand
- Silent Knight
- Mounting Type
- Wall-Mount inch
- Brand : Silent Knight
- Mounting Type : Wall-Mount inch
Sort
Others
Document Title
Document Type
File Size
0.44 MB
Sales Sheet
Document Title
Document Type
File Size
Installation Instructions
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
0.44 MB
Product Number
SKU
Description
SK-RELAYMON-2
Dual RelayMonitor Module: 15 to 32V DC: 2 Form C Relay Contacts
SKU
Description
SK-RELAYMON-2
Dual RelayMonitor Module: 15 to 32V DC: 2 Form C Relay Contacts
