10W 6.5 round wall or ceiling surface mount loudspeaker
10W 6.5 round wall or ceiling surface mount loudspeaker
Overview

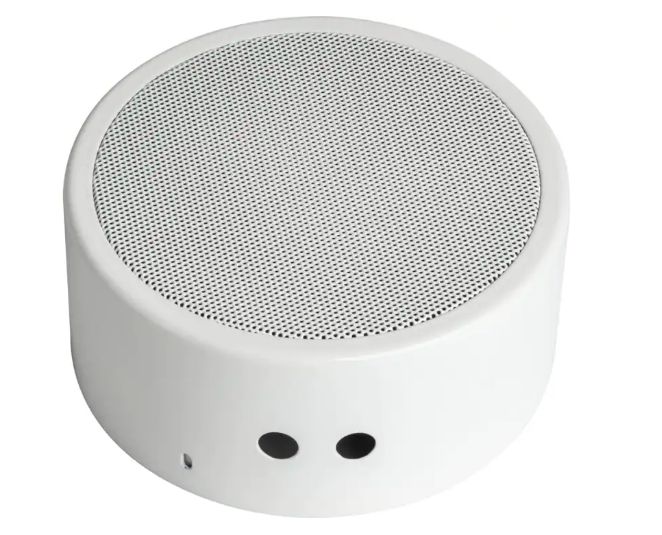

The loudspeaker DL-A 10-165/T-EN 54 for voice alarm made of powder-coated metal in white with high degree of efficiency and a high-quality 200 mm broadband loudspeaker chassis. DL-A 10-165/T-EN 54 can be installed on ceiling and walls, where recessed mounting is not possible. Flat and elegant design for unobtrusive installations provided with a metal back plate. The loudspeaker is equipped for highest security requirements with a ceramic terminal and a thermal fuse. The Chassis is protected against moisture by impregnation. The DL-A 10-165/T EN 54 offers a powerful sound besides the high safety standard.
Specifications
Others
- Wattage
- 6 watt
- Vertical Dispersion Angle
- 80 degree
- Overall Height
- 170 Millimeter-PRD
- Overall Depth
- 75 Millimeter-PRD
- Minimum Transmission Frequency
- 290 hertz
- Maximum Operating Ambient Temperature
- 80 Degrees Celsius
- Speaker Sensitivity
- 90.7 decibel
- Minimum Operating Ambient Temperature
- -20 Degrees Celsius
- Maximum Transmission Frequency
- 23400 hertz
- Speaker Diameter
- 170 millimetre
- Overall Width
- 170 Millimeter-PRD
- Horizontal Dispersion Angle
- 83 degree
- Compatible Environments
- DL-A 10-165/T-EN 54 Voice Alarm System
- Speaker Shape
- Ceiling
- Brand
- Eltek
- Transformer Power Taps
- 10
- 3
- 6
- 6/3 / 1.5 / 0.75
- Product Type
- Loudspeaker
- Mounting Type
- Ceiling; Wall; Surface
- Speaker Material
- Metal
- Maximum sound level range
- 100.7
Others
- Wattage
- 6 watt
- Vertical Dispersion Angle
- 80 degree
- Overall Height
- 170 Millimeter-PRD
- Overall Depth
- 75 Millimeter-PRD
- Minimum Transmission Frequency
- 290 hertz
- Maximum Operating Ambient Temperature
- 80 Degrees Celsius
- Speaker Sensitivity
- 90.7 decibel
- Minimum Operating Ambient Temperature
- -20 Degrees Celsius
- Maximum Transmission Frequency
- 23400 hertz
- Speaker Diameter
- 170 millimetre
- Overall Width
- 170 Millimeter-PRD
- Horizontal Dispersion Angle
- 83 degree
- Compatible Environments
- DL-A 10-165/T-EN 54 Voice Alarm System
- Speaker Shape
- Ceiling
- Brand
- Eltek
- Transformer Power Taps
- 10
- 3
- 6
- 6/3 / 1.5 / 0.75
- Product Type
- Loudspeaker
- Mounting Type
- Ceiling; Wall; Surface
- Speaker Material
- Metal
- Maximum sound level range
- 100.7
- Wattage : 6 watt
- Vertical Dispersion Angle : 80 degree
- Overall Height : 170 Millimeter-PRD
- Overall Depth : 75 Millimeter-PRD
- Minimum Transmission Frequency : 290 hertz
- Maximum Operating Ambient Temperature : 80 Degrees Celsius
- Speaker Sensitivity : 90.7 decibel
- Minimum Operating Ambient Temperature : -20 Degrees Celsius
- Maximum Transmission Frequency : 23400 hertz
- Speaker Diameter : 170 millimetre
- Overall Width : 170 Millimeter-PRD
- Horizontal Dispersion Angle : 83 degree
- Compatible Environments : DL-A 10-165/T-EN 54 Voice Alarm System
- Speaker Shape : Ceiling
- Brand : Eltek
- Transformer Power Taps : 10|3|6|6/3 / 1.5 / 0.75
- Product Type : Loudspeaker
- Mounting Type : Ceiling; Wall; Surface
- Speaker Material : Metal
- Maximum sound level range : 100.7
Product Number
SKU
Description
582423
10 W 6.5 round wall or ceiling surface mount loudspeaker, metal
582423.COA
Loudspeaker, 10W, 6.5in, Round WallCeiling Surface Mount, 170x75mm, 1.3Kg, Metal, White
SKU
Description
582423
10 W 6.5 round wall or ceiling surface mount loudspeaker, metal
582423.COA
Loudspeaker, 10W, 6.5in, Round WallCeiling Surface Mount, 170x75mm, 1.3Kg, Metal, White
