Network Cards & Modules

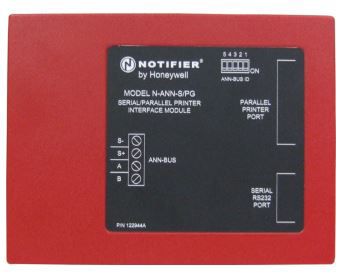

Serial/Parallel Printer Interface Module
The N-ANN-S/PG Interface module connects either a serial or parallel printer with a compatible Fire Alarm Control Panel (FACP) to print real-time logs of system events, detector status reports, and event histories.
Overview
The N-ANN-S/PG Interface module connects either a serial or parallel printer with a compatible Fire Alarm Control Panel (FACP) to print real-time logs of system events, detector status reports, and event histories.
The N-ANN-S/PG and the FACP communicate over a two-wire serial interface employing the ANN-Bus communication format. An additional two wires are used for 24-volt DC power. A single four conductor unshielded cable may be used for both power and data communications. Up to eight devices may be connected to the ANN-Bus of each FACP.
Features & Benefits:- Auto-configure menu selection allows programmer to bring all the devices attached to the ANN-Bus on-line quickly
- Surface mounts directly to wall
- Can be remotely located up to 6,000 feet (1,829 m) from the panel
- Connects a remote printer using a standard cable (DB-9 for a serial printer; DB-25 for a parallel printer)
- UL S635
- CSFM 7120-0028:0242
- MEA 442-06-E Vol.2
Specifications
Others
- Maximum Operating Humidity
- 0.93 Percentage
- Brand
- NOTIFIER
Others
- Maximum Operating Humidity
- 0.93 Percentage
- Brand
- NOTIFIER
- Maximum Operating Humidity : 0.93 Percentage
- Brand : NOTIFIER
Product Number
SKU
Description
N-ANN-S/PG
SerialParallel Printer Interface Module, 24V DC, 45mA, 6.00x7.76x1.46 in
SKU
Description
N-ANN-S/PG
SerialParallel Printer Interface Module, 24V DC, 45mA, 6.00x7.76x1.46 in
