    Power Supplies

    INSPIRE N16x Power Supply

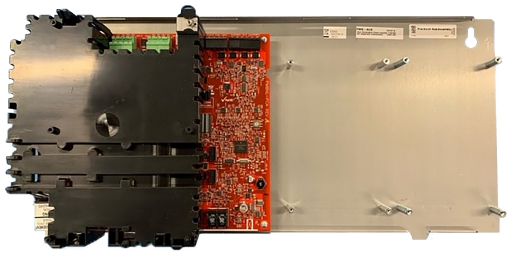

    The PMB-AUX is the chassis mount addressable power supply and battery charger compatible with the NOTIFIER INSPIRE™ N16 Series Fire Alarm Control Panel

    Overview

    The PMB-AUX addressable powersupply feature four power-limited NAC outputs which can be configured for either Class A or Class B wiring, two 24VDC auxiliary power outputs, and a remote sync input. A maximum of two (2) PMB-AUX(-RTO) power supplies can be installed in a N16x series panel or compatible enclosure. The PMB power supply for the N16 FACP supports a maximum of five loop cards. One or two PMB-AUX(-RTO) power supplies can be added depending on total number of loop cards, battery charging and alarm load requirements

    Features & Benefits:
    • Addressable on the CLP Bus
    • Universal AC power: 120VAC 50/60 HZ, 1A 240VAC 50/60 Hz
    • 3 amps of power in standby/8.5 amps of power in alarm
    • Four (4) power-limited NAC outputs which can be configured for either Class A or Class B wiring
    • Two (2) 24VDC auxiliary power outputs, and a remote sync input
    • Selectable charging current charges 7 AH to 100 AH batteries
    • USB Type B connector for programming installation parameters
    • Battery/battery charger supervision
    • Mounts in a CAB-5 or CAB-4 Series enclosure
    Certifications:
    • UL 864 10th Edition Listed : S635
    • FM Approved
    • CSFM Approved : 7165-0028:0516
    • FDNY Approved : COA#001761
    Others
    Name
    Description
    File Size
    Date
    Size
    N16 Listing Document
    application/pdf 1.84 MB
    3/21/2023
    1.84 MB
    PMB-AUX/PMB-AUX-RTO Power Supplies for N16 Series-Data Sheet
    application/pdf 968.33 KB
    4/4/2023
    968.33 KB
    SLM-318 Install Sheet
    application/pdf 227.67 KB
    5/8/2023
    227.67 KB
    PMB-AUX Install Sheet
    application/pdf 775 KB
    5/8/2023
    775 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    PMB-AUX(-RTO) Power Supplies for the XLS4000 Series FACP Datasheet
    application/pdf 818.69 KB
    5/14/2023
    818.69 KB
    Name
    Description
    File Size
    Date
    Size
    N16 Listing Document
    application/pdf 1.84 MB
    3/21/2023
    1.84 MB
    PMB-AUX/PMB-AUX-RTO Power Supplies for N16 Series-Data Sheet
    application/pdf 968.33 KB
    4/4/2023
    968.33 KB
    PMB-AUX(-RTO) Power Supplies for the XLS4000 Series FACP Datasheet
    application/pdf 818.69 KB
    5/14/2023
    818.69 KB
    SLM-318 Install Sheet
    application/pdf 227.67 KB
    5/8/2023
    227.67 KB
    PMB-AUX Install Sheet
    application/pdf 775 KB
    5/8/2023
    775 KB
    Name
    Description
    File Size
    Date
    Size
    N16 Listing Document
    1.84 MB
    3/21/2023
    PMB-AUX/PMB-AUX-RTO Power Supplies for N16 Series-Data Sheet
    968.33 KB
    4/4/2023
    SLM-318 Install Sheet
    227.67 KB
    5/8/2023
    PMB-AUX Install Sheet
    775 KB
    5/8/2023
    PMB-AUX(-RTO) Power Supplies for the XLS4000 Series FACP Datasheet
    818.69 KB
    5/14/2023
    Product Number
    Part Number
    Description
    Add to list
    PMB-AUX
    Addressable Power Supplybattery charger for N16 Series, 4 NACs, on chassis for CAB-5
    PMB-AUX-RTO
    Addressable Power Supplybattery charger for N16 series, 4 NACs, on chassis for CAB-4
