Relays

Track Mount Control Relay with Override Switch

Track mount control relays are available with one SPDT or SPST with continuous duty coil contact type having expected relay life of 10 million cycles minimum mechanical.

Overview

Track mount control relays are available with one SPDT or SPST with continuous duty coil contact type having expected relay life of 10 million cycles minimum mechanical.

Certifications:
  • UL Listed
  • UL916
  • UL864
  • C-UL
Specifications

Others

  • Minimum Operating Ambient Temperature
    • -30°F
  • Maximum Operating Humidity
    • 95% (Non-Condensing)
  • Minimum Operating Humidity
    • 5% (Non-Condensing)
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
  • Brand
    • Alerton
  • Product Type
    • Relay Degrees Celsius
  • Mounting Type
    • Track inch

Others

  • Minimum Operating Ambient Temperature
    • -30°F
  • Maximum Operating Humidity
    • 95% (Non-Condensing)
  • Minimum Operating Humidity
    • 5% (Non-Condensing)
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
  • Brand
    • Alerton
  • Product Type
    • Relay Degrees Celsius
  • Mounting Type
    • Track inch
  • Minimum Operating Ambient Temperature : -30°F
  • Maximum Operating Humidity : 95% (Non-Condensing)
  • Minimum Operating Humidity : 5% (Non-Condensing)
  • Maximum Operating Ambient Temperature : 140 degree Fahrenheit
  • Brand : Alerton
  • Product Type : Relay Degrees Celsius
  • Mounting Type : Track inch
Sort
Document Title
Document Type
File Size
Product Number
SKU
Description
alt

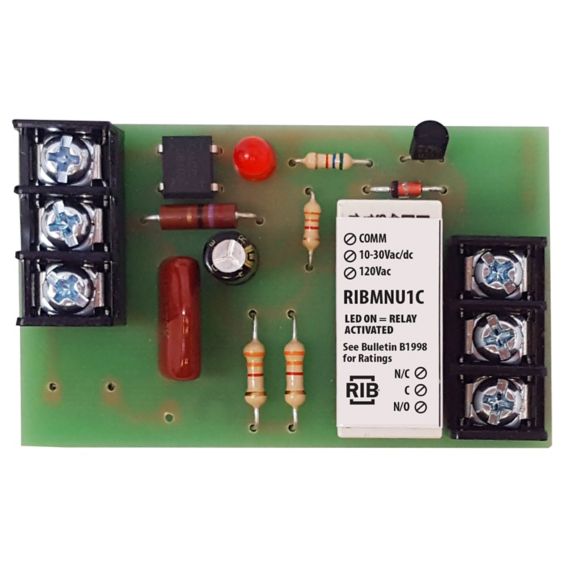

RIBMNU1C
Track Mount Control Relay, 1.700˝x2.750˝x1.750˝, 20ms Operate Time, -30 to 140F, 15 Amp SPDT, 10-30 Vacdc120V AC Coil, Gold Flash
alt
RIBMNU1S
Track Mount Control Relay, 2.500˝x2.750˝x1.750˝, 20ms Operate Time, -30 to 140F, 15 Amp SPST + Override, 10-30 Vacdc120V AC Coil, Gold Flash
SKU
Description
alt
RIBMNU1C
Track Mount Control Relay, 1.700˝x2.750˝x1.750˝, 20ms Operate Time, -30 to 140F, 15 Amp SPDT, 10-30 Vacdc120V AC Coil, Gold Flash
alt
RIBMNU1S
Track Mount Control Relay, 2.500˝x2.750˝x1.750˝, 20ms Operate Time, -30 to 140F, 15 Amp SPST + Override, 10-30 Vacdc120V AC Coil, Gold Flash
