Q7002 Interface Modules
The Q7002 Interface Modules allow controllers with an otherwise incompatible signal to control an Economizer Logic Module or Direct Coupled Actuator.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Q7002 Interface Modules allow controllers with an otherwise incompatible signal to control an Economizer Logic Module or Direct Coupled Actuator.
Features & Benefits:- 24 Vac or 24 Vdc power.
- Available for input signals: dc voltage, current, or resistive; and pulse-width modulation (PWM).
- Available to provide output: analog voltage or current for an actuator.
- Inputs and outputs are jumper-selectable and include adjustable zero and span.
- Output is jumper-selectable direct or reverse acting.
- Includes reference voltage and current to power an input device or sensor.
- PWM time base is user-selectable with positive or negative input reference; all ranges have 255-step resolution.
- Multiplex mode enables one PWM signal from a Building Automation System (BAS) controller to address and control up to eight interface modules.
Honeywell will provide product support until
Data Sheet
Name
Description
File Size
Date
Size
Q7002A,B,C Interface Modules Interface Modules
application/pdf 387.46 KB
12/1/1998
387.46 KB
Name
Description
File Size
Date
Size
Q7002A,B,C Interface Modules Interface Modules
application/pdf 387.46 KB
12/1/1998
387.46 KB
Name
Description
File Size
Date
Size
Q7002A,B,C Interface Modules Interface Modules
387.46 KB
12/1/1998
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
Q7002B1009/U
Interface Module, Accepts dc voltage, current, or resistive input and provides a voltage or current output
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7002B1009-U-left-1
Q7002B1009/U
Interface Module, Accepts dc voltage, current, or resistive input and provides a voltage or current output
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7002B1009-U-left-1

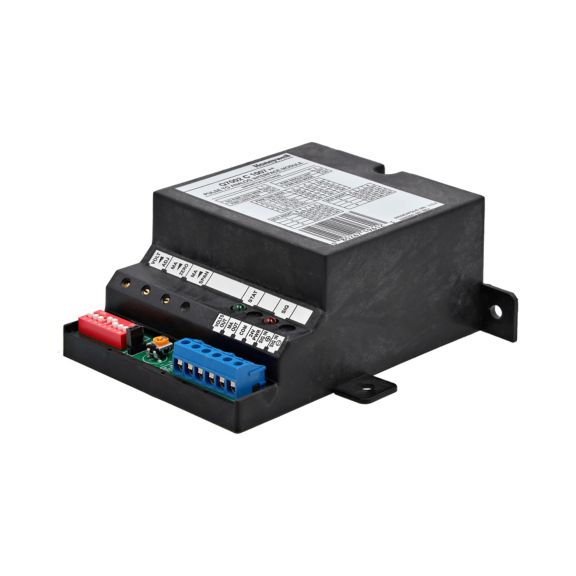

Q7002C1007/U
